The purpose of this assignment is to introduce you to programming with functions and to survey some of the key ingredients of sound synthesis. You will create a library of functions to synthesize sound for an electronic synthesizer.

Building blocks.  Here are some of the sound waves most commonly used in electronic synthesizers:

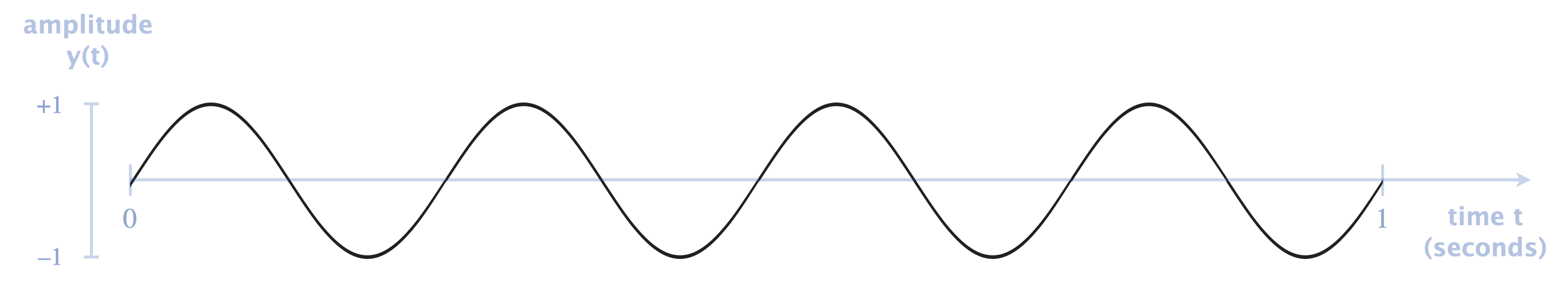

• Sine wave.  A sine wave is a sound wave defined by the sine trigonometric function. The following diagram illustrates a sine wave whose frequency is 4 Hz:



  Mathematically, the amplitude \(y(t)\) of a sine wave of frequency f at time t is given by:

  \( y(t) \; = \; \sin ( 2 \pi \, f \, t)\)

  The sine wave produces a pure note, similar to a tuning fork or whistle. Here is how a 440 Hz sine wave (concert A) sounds:

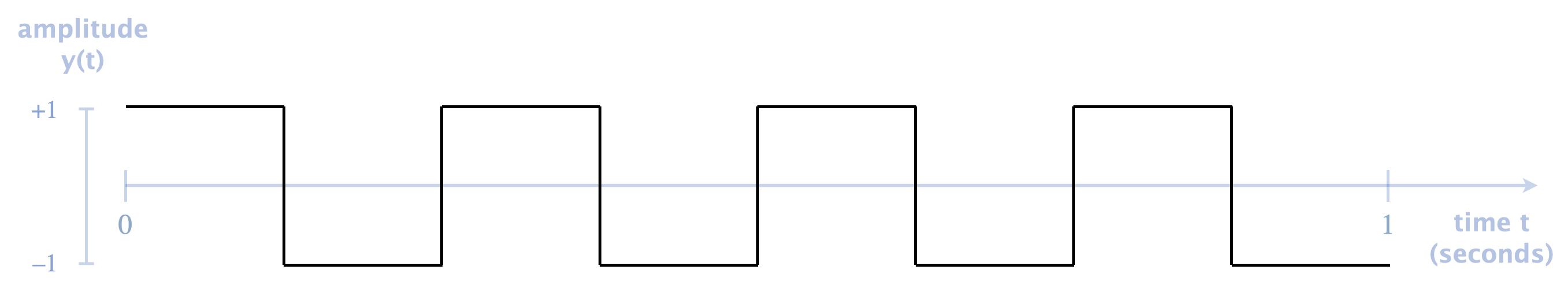

• Square wave.  A square wave alternates between +1 and –1 at a fixed frequency f, half the time at each value. The following diagram illustrates a square wave whose frequency is 4 Hz:




  Mathematically, the amplitude \(y(t)\) of a square wave of frequency f at time t is given by

  \( y(t) \; = \; 2 \, \left ( 2 \, \lfloor \,\, f \, t \, \rfloor \; - \; \lfloor \, 2 \, f \, t \rfloor \right ) \;+\; 1 \)

  Here \( \lfloor x \rfloor\) denotes the floor function of \(x\), which is the largest integer less than or equal to \(x\).

  The square wave produces a hollow and woody sound. It can be used to model reed instruments and guitar distortions. Here is how a 440 Hz square wave sounds:

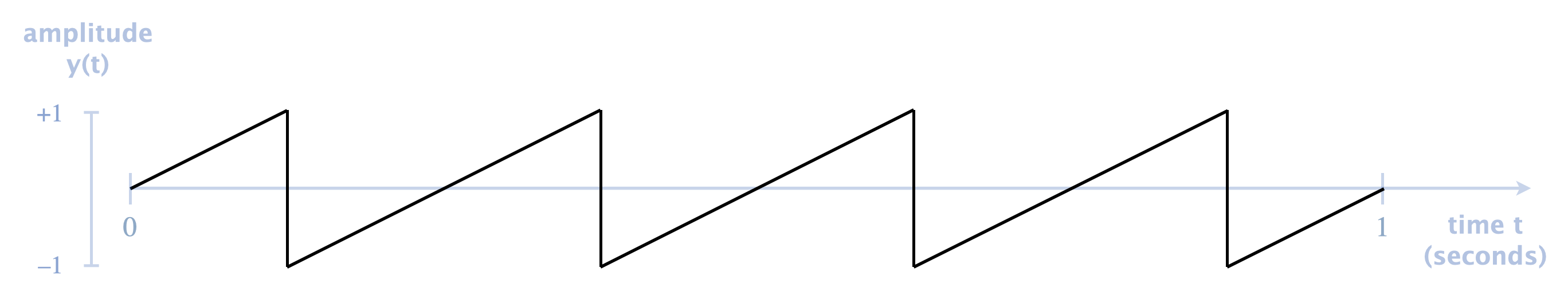

• Sawtooth wave.  A sawtooth wave rises from –1 to +1 in a linear manner, drops immediately back down to –1, and repeats. The shape of the curve resembles the teeth on a saw. The following diagram illiterates a sawtooth wave whose frequency is 4 Hz:




  Mathematically, the amplitude \(y(t)\) of a sawtooth wave of frequency f at time t is given by

  \( y(t) \; = \; 2 \times (\,f \, t \,-\, \lfloor \, f \, t + \frac{1}{2} \, \rfloor) \)

  The sawtooth wave produce a clear and bright sound. It can be used to model string and brass instruments. Here is how a 440 Hz sawtooth wave sounds:

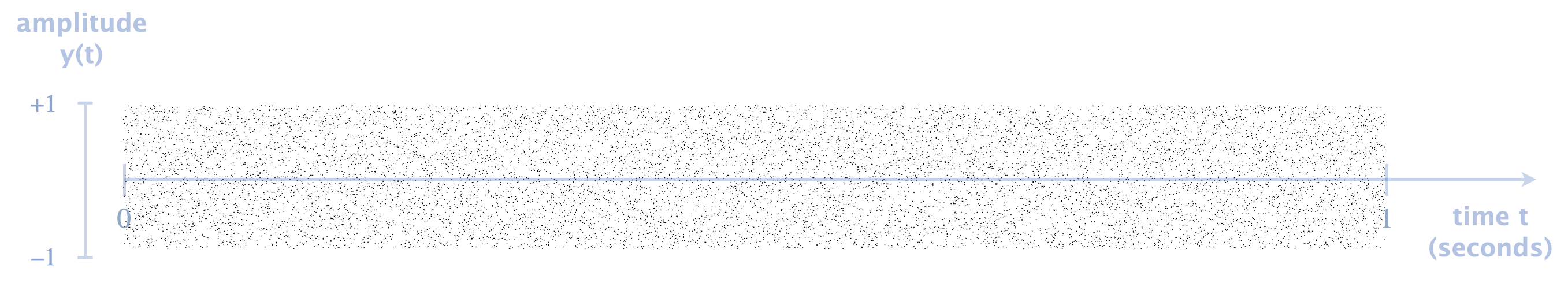

• White noise.  White noise consists of random values between –1 and +1. Mathematically, the amplitude at time \(t\) is a uniformly distributed random variable between –1 and +1:

  \( y(t) \,\sim\, \textit{Uniform}(-1, +1)\)

  It produces a “sound wave” with no discernible frequency.



  White noise can be used to model inharmonic percussive instruments such as hi-hats, cymbals, and snare drums. Here is how white noise sounds:

Digital audio.  In digital audio, we represent a sound wave as an array of real numbers between –1 and +1, with 44,100 samples per second. That is, to represent each of the sound waves above, sample the function 44,100 times per second at the values \(t = \frac{0}{44100}, \frac{1}{44100}, \frac{2}{44100}, \ldots \). If the audio is \(d\) seconds long, you will have a total of \( n = \lceil 44100 \times d \rceil \) samples. Here, \( \lceil x \rceil\) denotes the ceiling function of \(x\), which is the smallest integer greater than or equal to \(x\).

For example, the following diagram illustrates a sine wave (whose frequency is 2048 Hz) for \(d = \frac{1}{512}\) seconds. We represent it digitally as an array of length \( \lceil 44100 \times \frac{1}{512} \rceil = 87\), with sample \(i\) taken at time \(t = \frac{i}{44100}\).

Manipulating sound waves. Synthesizers produce richer sounds by combining sound waves in different ways. Here are a few simple and important mechanisms.

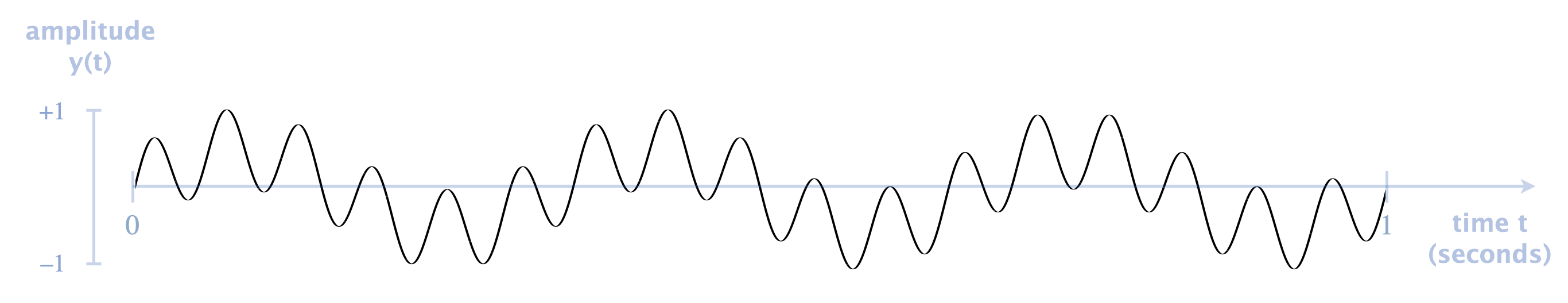

• Add.  Given two sound waves of the same length, we can create a new sound wave that superposes the two by adding the values of the corresponding samples. For example, here is the result of adding two sine waves, one of frequency 17 Hz and the other of frequency 3 Hz:



  This can be used to adjust the timbre (perceived sound quality of a musical note) by adding harmonics (sound wave whose frequency is an integer multiple of the original sound wave) or inharmonic partials (sound wave whose frequency is not an integer multiple of the original sound wave). It can also be used to create chords (multiple musical notes that are heard simultaneously).

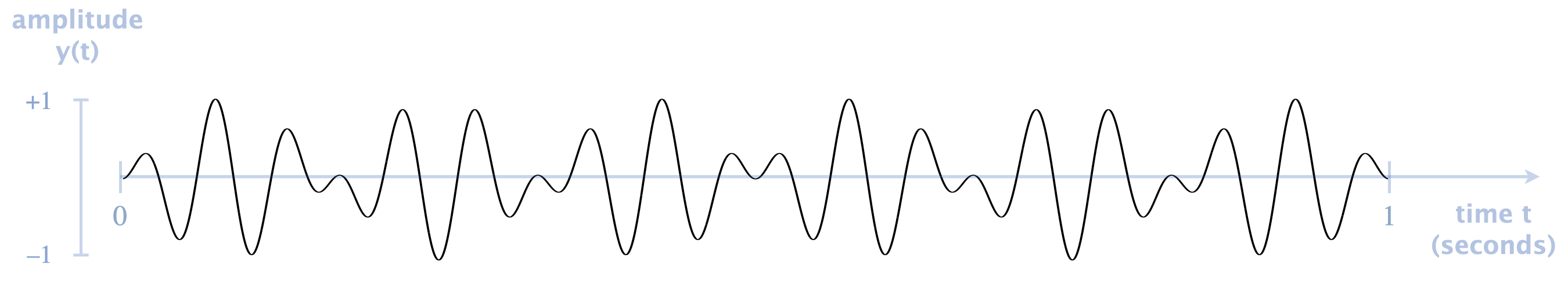

• Multiply.  Given two sound waves of the same length, we can create a new sound wave by multiplying the values of the corresponding samples. For example, here is the result of multiplying two sine waves, one of frequency 17 Hz and the other of frequency 3 Hz:



  This can produce brash metallic sounds when the two frequencies are in tune. It can also produce a tremolo effect (a rapid wavering between getting louder and softer) when one of the frequencies is in the subaudio range (below 20 Hz). Here is a tremolo effect that results from multiplying a sine wave of frequency 220 Hz with a sine wave of frequency 1 Hz:




• Sound envelope.  A sound envelope defines how a sound changes over time. A sound envelope \(A(t)\) is a function of time \(t\) whose values are between 0 and 1, typically starting at 1 and decreasing to 0. Applying a sound envelope \(A(t)\) to a sound wave \(y(t)\) results in the sound wave \(A(t) \times y(t)\). You can think of \(A(t)\) as the peak amplitude of the sound wave, with that peak decreasing over time. For example, when striking a piano key, it makes an initial sound almost immediately, and, then, its volume gradually decreases to zero.

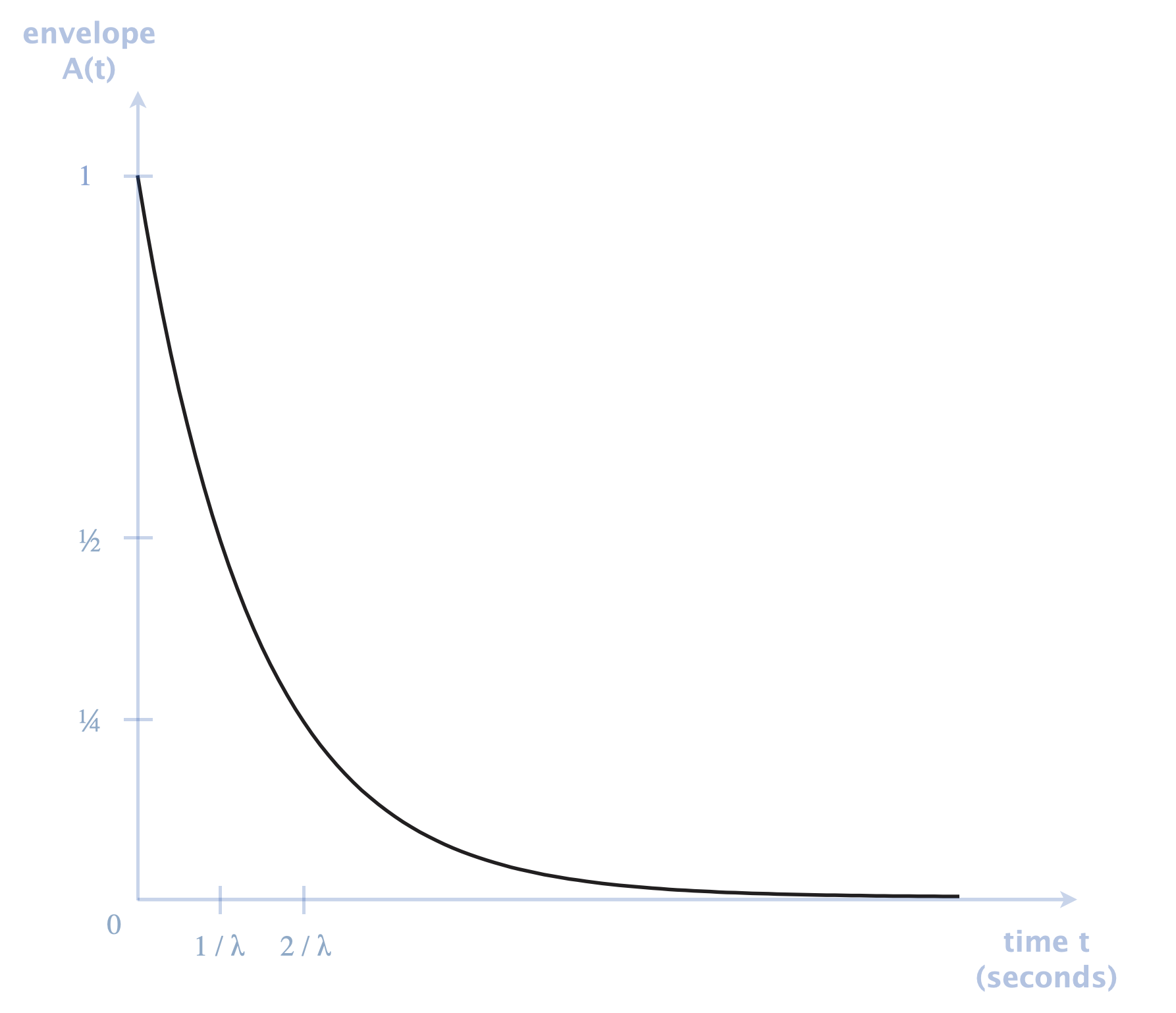

  An exponential fade is a sound envelope in which the volume decreases from 1 toward 0 according to an exponential function:




  The decay parameter \(\lambda\) controls the rate at which it fades to zero: the volume decreases by a factor of 2 every \( 1 \, / \, \lambda\) seconds. Mathematically, the sound envelope \(A(t)\) of an exponential fade is given by:

  \( A(t) \; = \; 2^{\, - \lambda \, t}\)

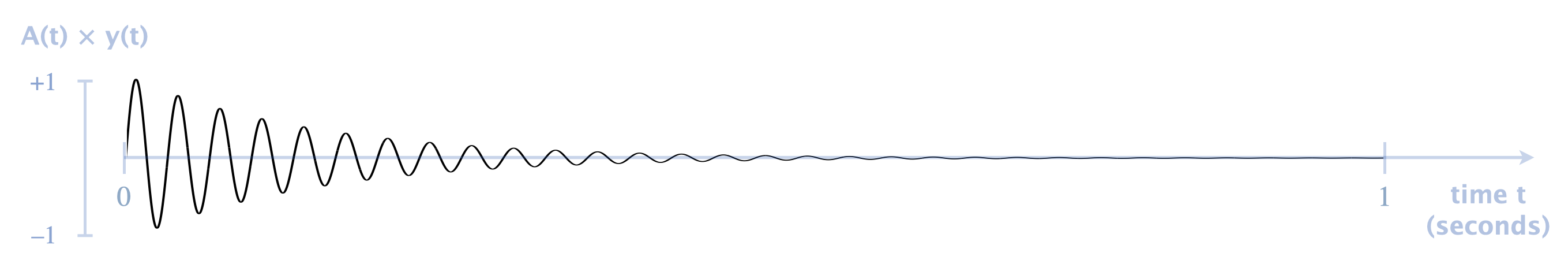

  For example, the following diagram illustrates applying an exponential fade to a sine wave of frequency 30 Hz with \(\lambda = 10\):





  Here are the results from applying exponential fades to different sound waves. Each sound lasts 1 second and is repeated 10 times.

  wave	frequency	\(\lambda\)	sound
  sine	440	10
  square	55	5
  saw	220	10
  white noise	–	10
  white noise	–	20

1. Synthesizer. Write a program Synth.java that implements a library of synthesizer functions, as described above. To do so, organize your program according to the following public API:

   public class Synth {

       // Returns the number of samples for the given duration.
       public static int length(double duration)

       // Returns the sine function of given frequency at time t.
       public static double sine(double frequency, double t)

       // Returns the square function of given frequency at time t.
       public static double square(double frequency, double t)

       // Returns the sawtooth function of given frequency at time t.
       public static double saw(double frequency, double t)

       // Returns a sine wave of the specified frequency, amplitude, and duration.
       public static double[] sineWave(double frequency, double amplitude, double duration)

       // Returns the square wave of given frequency, amplitude, and duration.
       public static double[] squareWave(double frequency, double amplitude, double duration)

       // Returns a sawtooth wave of the specified frequency, amplitude, and duration.
       public static double[] sawWave(double frequency, double amplitude, double duration)

       // Returns white noise of the specified amplitude and duration.
       public static double[] whiteNoise(double amplitude, double duration)

       // Returns a new array that is the sum of a[] and b[].
       public static double[] add(double[] a, double[] b)

       // Returns a new array that is the product of a[] and b[].
       public static double[] multiply(double[] a, double[] b)

       // Returns the wave that results from applying an exponential fade
       // to a[] with decay rate lambda.
       public static double[] fade(double[] a, double lambda)

       // Tests each public method.
       public static void main(String[] args)
   }


   Here is some more information about the required behavior:

   • Length.  Give a duration \(d\) (in seconds), the number of samples is \(n = \lceil 44100 \times d \rceil \). You'll find this to be a useful helper method for some of the other methods.

   • Sine wave, square wave, sawtooth wave, and white noise.  Return an array that samples the specified function, using a sampling rate of 44,100 Hz. That is,

     • Create an array of length \( n = \lceil 44100 \times d \rceil \).

     • Element \(i\) of the array is given by \(\textit{amplitude} \times y(t)\), where \(t = \frac{i}{44100}\).

     Exercise modular design: for example, the sineWave() function should call the sine() and length() functions.

   • Add and multiply.  Create a new array and add/multiply the corresponding pairs of samples. You may assume that the two sound waves are of the same length.

   • Exponential fade.  Create a new array and multiply sample i by \( 2^{\, - \lambda \, t} \), where \(t = \frac{i}{44100}\).

   • Unit testing.  The main() method must call every public method, either directly or indirectly to test that it works as expected. For example, you can call squareWave(22050.0, 0.5, 0.00021) and check that it returns an array of length 10, alternating between 0.5 and -0.5.

   • Corner cases.

     • You may assume that the frequency, duration, and t arguments are always non-negative.

     • You may assume that none of the floating-point arguments are infinity or NaN.

     • You may assume that the array arguments are not null.

     • The functions must not mutate the argument array(s). If the function returns an array, you must create a new array of the specified length and return that newly created array.

     • You may not add public functions. You are free to add private helper methods to make your code easier to read, maintain, and debug.




   Here are some examples of the expected behavior:

   ~/Desktop/functions> javac-introcs Synth.java

   ~/Desktop/functions> jshell-introcs
   ~/Desktop/functions> /open Synth.java

   jshell> double[] y = Synth.sineWave(440, 0.25, 5.0)
   jshell> StdAudio.play(y)




   jshell> double[] y = Synth.squareWave(440, 0.25, 5.0)
   jshell> StdAudio.play(y)




   jshell> double[] y = Synth.sawWave(440, 0.25, 5.0)
   jshell> StdAudio.play(y)




   jshell> double[] y = Synth.whiteNoise(1.0, 5.0)
   jshell> StdAudio.play(y)



   jshell> StdAudio.play(Synth.fade(y, 10.0))




   jshell> double[] wave1 = Synth.sineWave(220.0, 1.0, 10.0);
   jshell> double[] wave2 = Synth.sineWave(  1.0, 1.0, 10.0);
   jshell> double[] tremolo = Synth.multiply(wave1, wave2)
   jshell> StdAudio.play(tremolo)








2. Client. In this open-ended exercise, you will create your own sound wave by calling various functions in Synth and creating additional functions of your own.

   Here are the requirements to earn full credit:

   • The main() method must create the sound and play it using StdAudio.play().

   • The duration must be between 10 and 60 seconds (between 441,000 and 2,646,000 samples).

   • You must call at least two different functions in Synth.

   • You must create at least one function of your own.

   • Do not use any command-line arguments.

   • You may use standard input. If you do so, please submit a file MySound.txt. We will test your program with the command:

     ~/Desktop/functions> javac-introcs MySound.java Synth.java

     ~/Desktop/functions> java-introcs MySound.java < MySound.txt


   You are welcome to use one of the following concrete ideas or do something entirely on your own:

   • Supersaw. A supersaw wave is a sound that is created by adding several sawtooth waves, all slightly detuned from one another. The supersaw became popular in the 1990s with the Roland JP-8000 synthesizer.

     For example, to create a supersaw of frequency f, create 7 sawtooth waves using the following frequencies and amplitudes:

     frequency	amplitude
     f – 0.191	0.05
     f – 0.109	0.05
     f – 0.037	0.05
     f	0.05
     f + 0.031	0.05
     f + 0.107	0.05
     f + 0.181	0.05

     Then, add them together. Using these parameters, a 150 Hz supersaw will produce the following sound:

     There is nothing sacrosanct about these parameters, so feel free to experiment.




   • Bell. You can create a bell-like sound by adding a bunch of enharmonic sine waves together. For example, to create a bell-like sound of frequency f, create 9 sine waves using the following frequencies and amplitudes. Note that most of the frequencies are not integer multiples of f, which is what we mean by enharmonic.

     frequency	amplitude
     f × 0.56	0.125
     f × 0.92	0.125
     f × 1.19	0.125
     f × 1.71	0.125
     f × 2	0.125
     f × 2.74	0.125
     f × 3	0.125
     f × 3.76	0.125
     f × 4.07	0.125

     If you add them together and apply an exponential fade (with \(\lambda = 2\)), the result should sound similar to a bell. A 500 Hz bell should sound like the following:

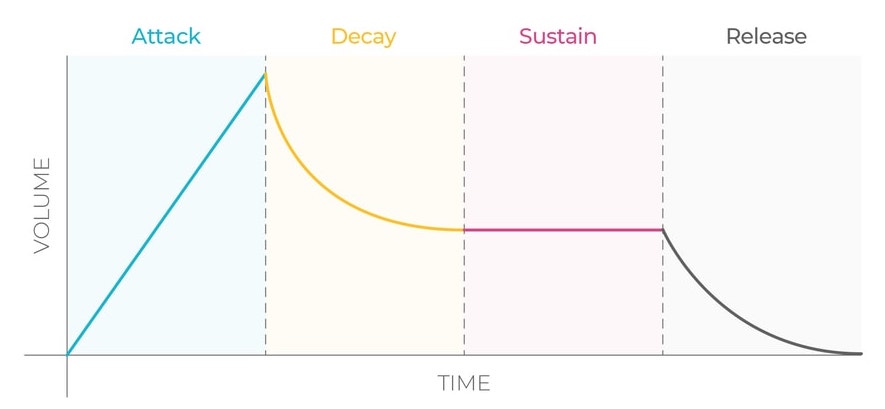

   • ADSR envelope. The attack–decay–sustain–release (ADSR) envelope is the most common type of envelope generator used in electronic synthesizers. It consists of four phases:

     • The attack is the time it takes for the sound to go from zero to peak volume.

     • The decay is the time for the sound to fade to its secondary volume.

     • The sustain is the time it remains at the secondary volume.

     • The release is the time it takes for the volume to fade out.

     The attack, decay, and release phases can use linear, exponential, or logarithmic functions.



   • FM modulation. Frequency modulation is a sound wave in which the frequency of a sine wave changes over time (instead of being fixed). It can produce more complex sounds, including percussive, metallic, and instrumentals. FM modulation was the basis of the Yamaha DX7, a hugely influential synthesizer from the 1980s.

     Mathematically, the amplitude \(y(t)\) of an FM wave with carrier frequency \(f_c\), modulation frequency \(f_m\), and modulation depth \(D\) is given by:

     \( y(t) \; = \; \sin \left ( 2 \pi \, f_c \, t \;+\; D \sin(2 \pi \, f_m \, t) \right) \)

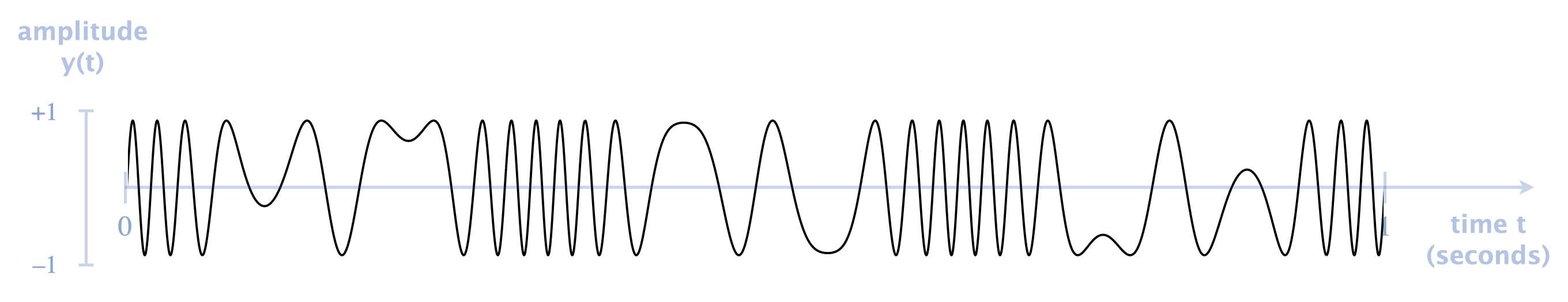

     The following diagram illustrates an FM wave with \(f_c = 17 \; \text{Hz}\), \(f_m = 4 \; \text{Hz}\), and \(D = 10\):



     Here are the sounds that result from playing various FM waves (10 times each for 1 second), applying an exponential fade to each FM wave:

     \(f_c\)	\(f_m\)	\(D\)	\(\lambda\)	sound
     210	35	10	2
     220	110	8	1
     220	10	110	2
     2.5	175	150	4

Submission. Submit the Java files Synth.java and MySound.java. Also submit a MySound.txt file if your MySound.java program reads from standard input. Finally, submit a readme.txt file and answer the questions.

Grading.

File	Points
Synth.java	28
MySound.java	7
readme.txt	5
Total	40
