Mesh Processing Examples

Scale

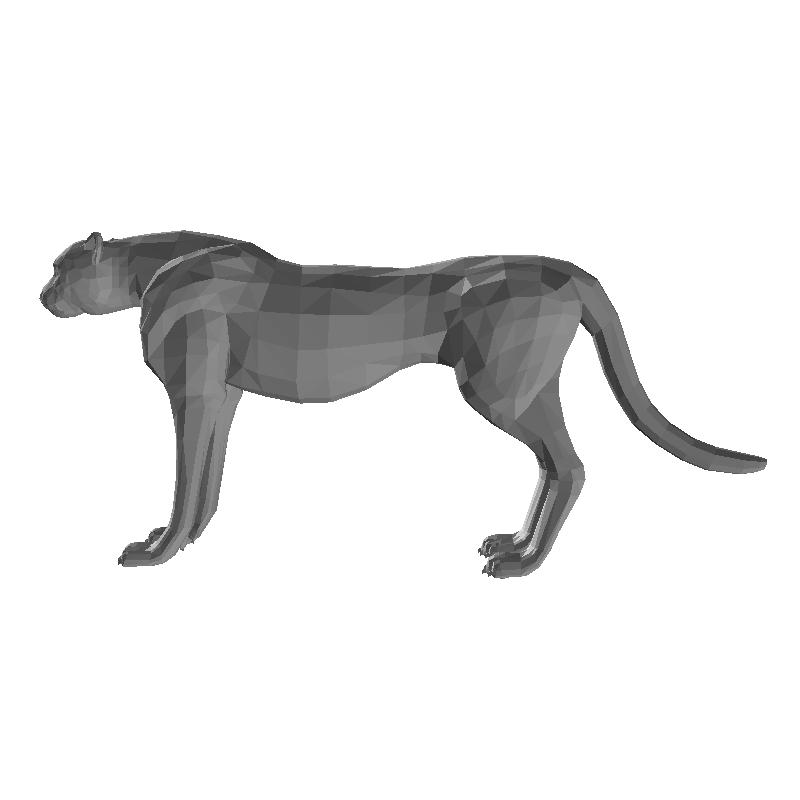

Original		 9.jpg

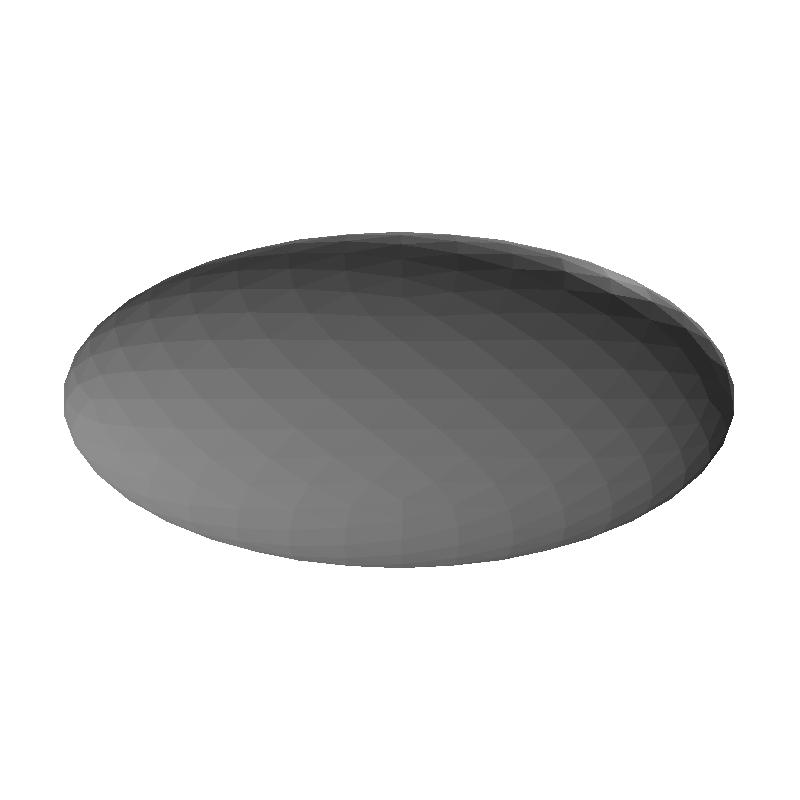

-scale 2 1 1

Compute normals

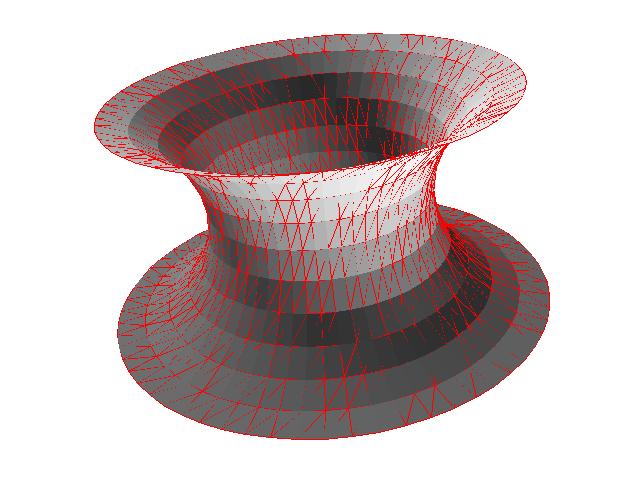

Compute Normals

Inflate


Original

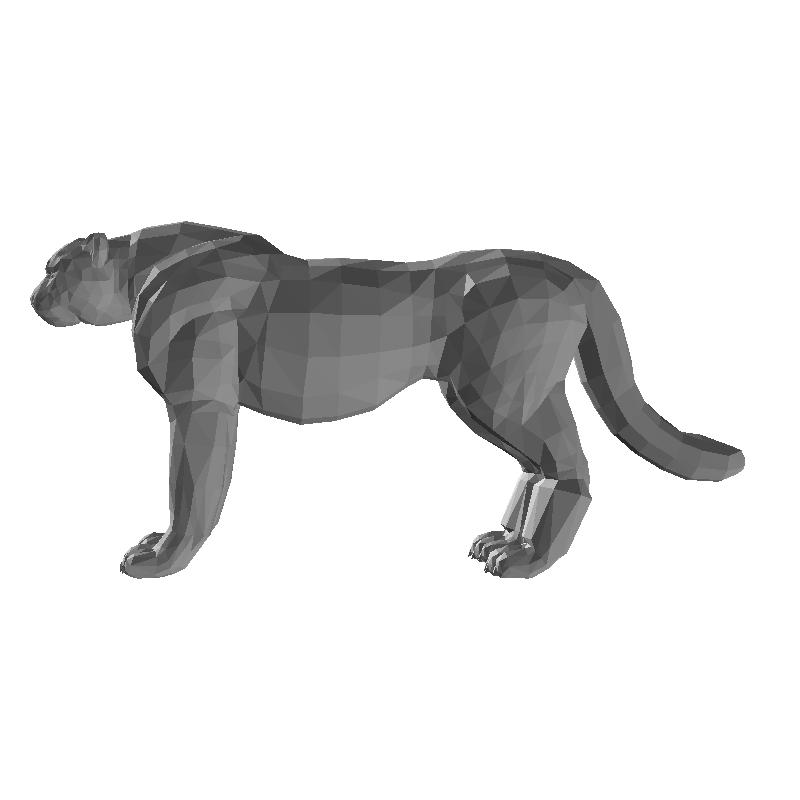

-inflate 0.5

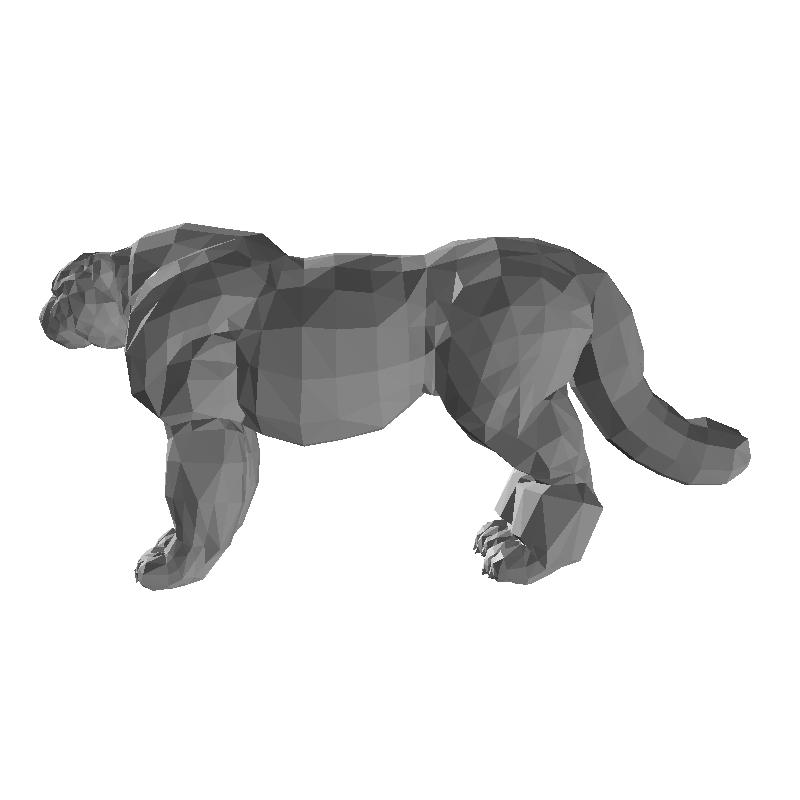

-inflate 1

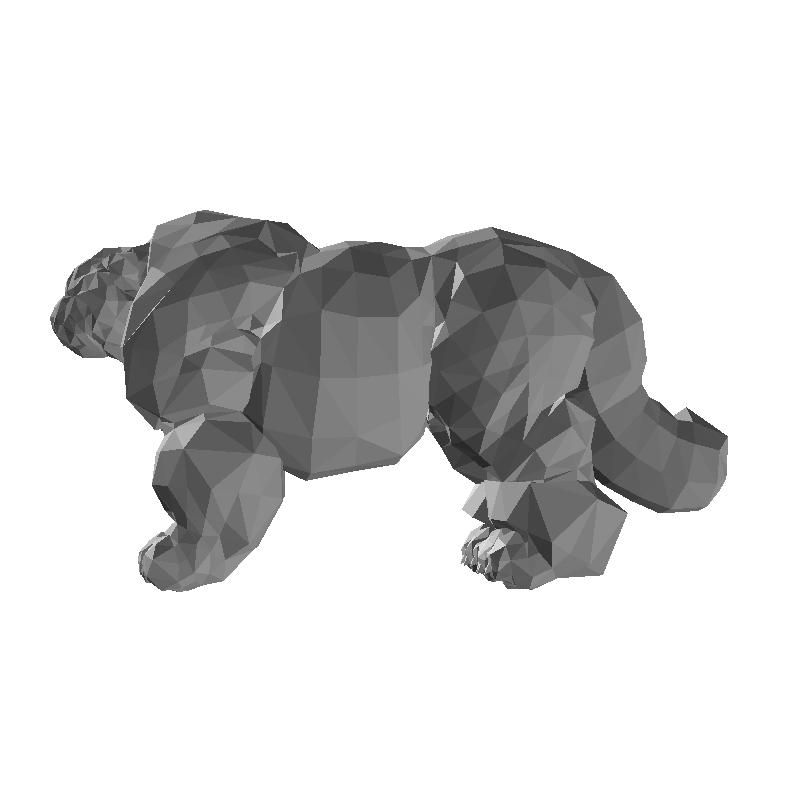

-inflate 2

Random Noise


Original

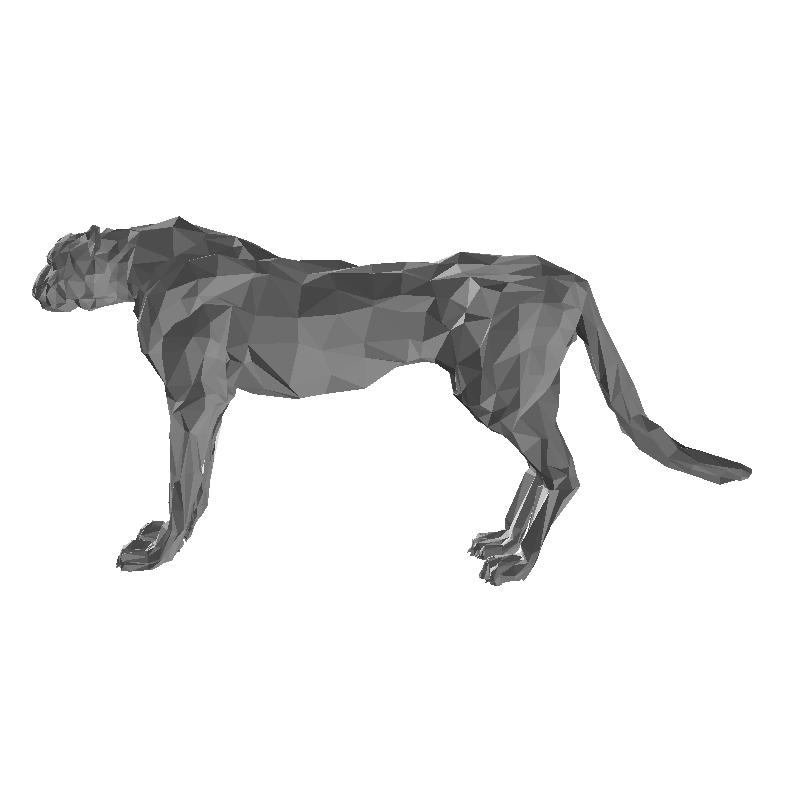

-noise 0.5

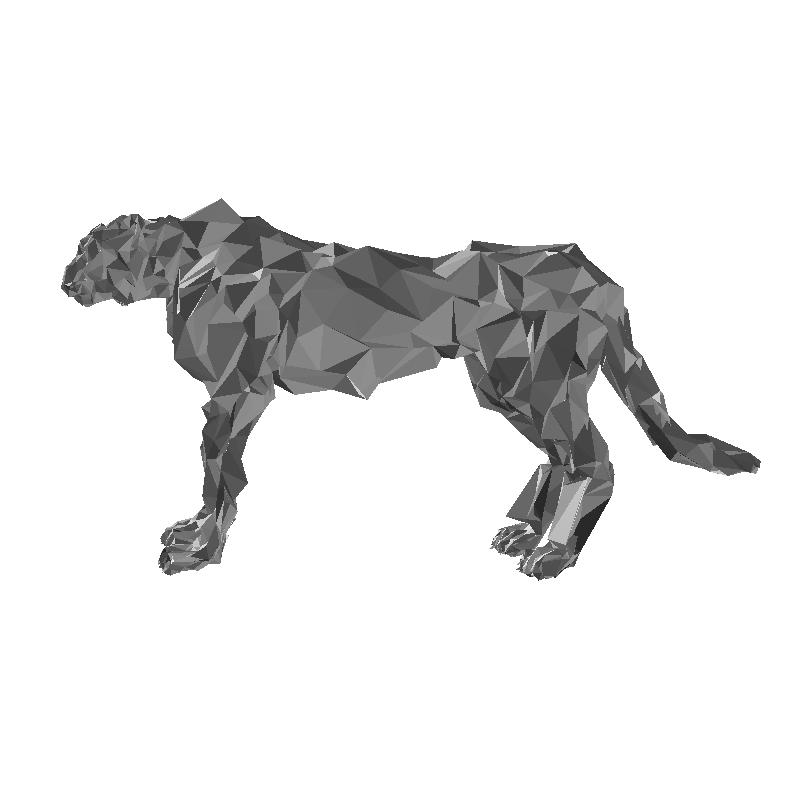

-noise 1

Smooth


Original
-smooth

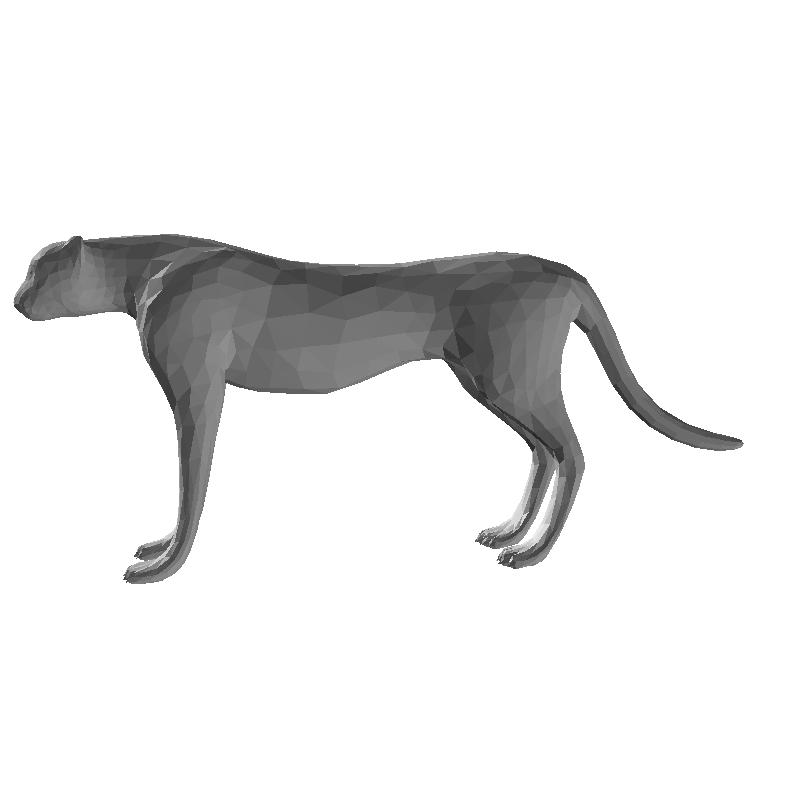

-smooth -smooth

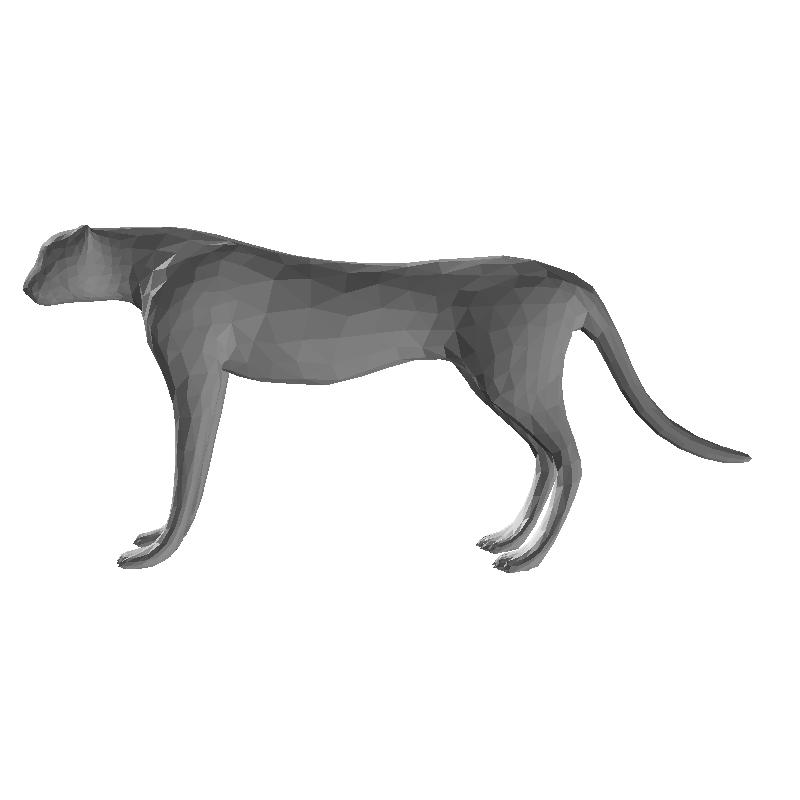

-smooth -smooth -smooth

Sharpen


Original

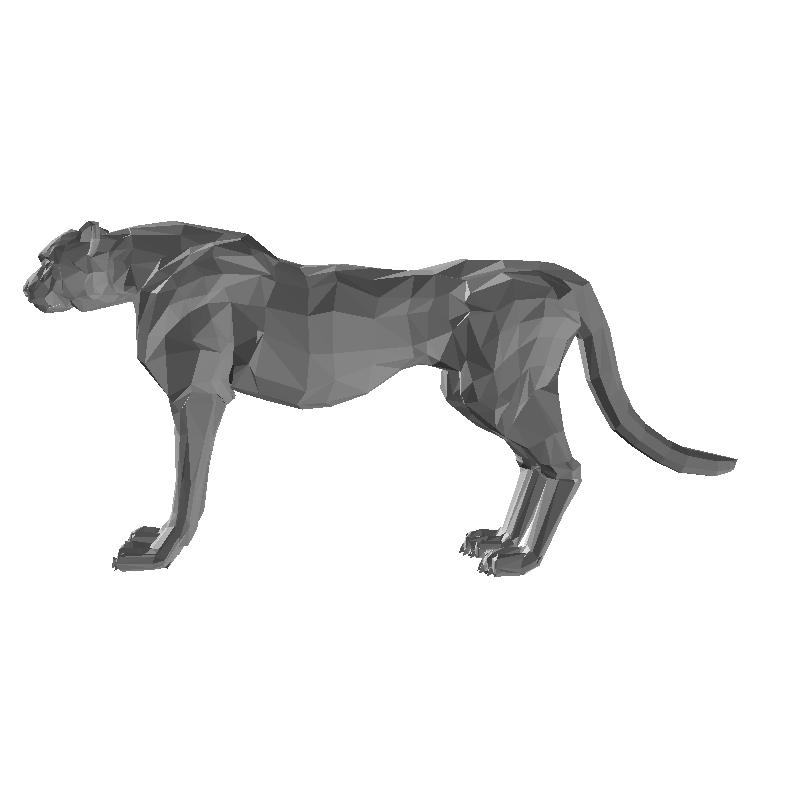

-sharpen

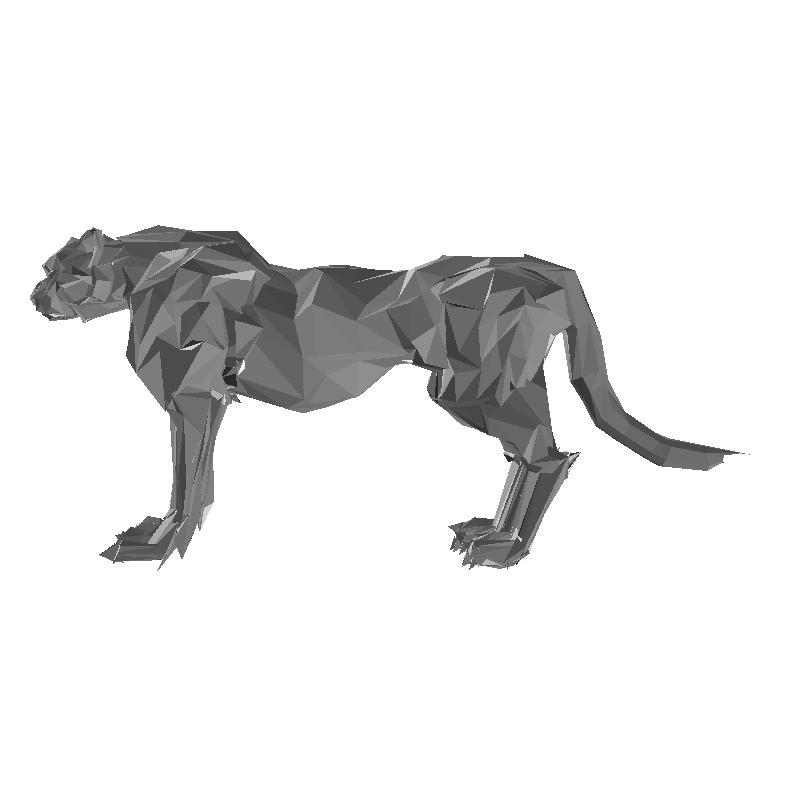

-sharpen -sharpen

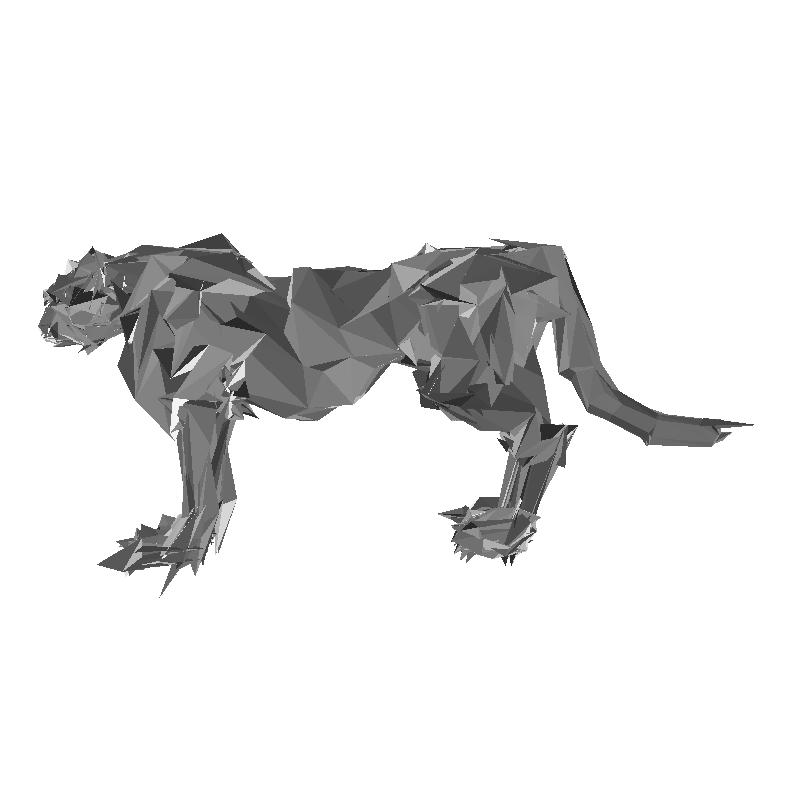

-sharpen -sharpen -sharpen

Truncate


Original

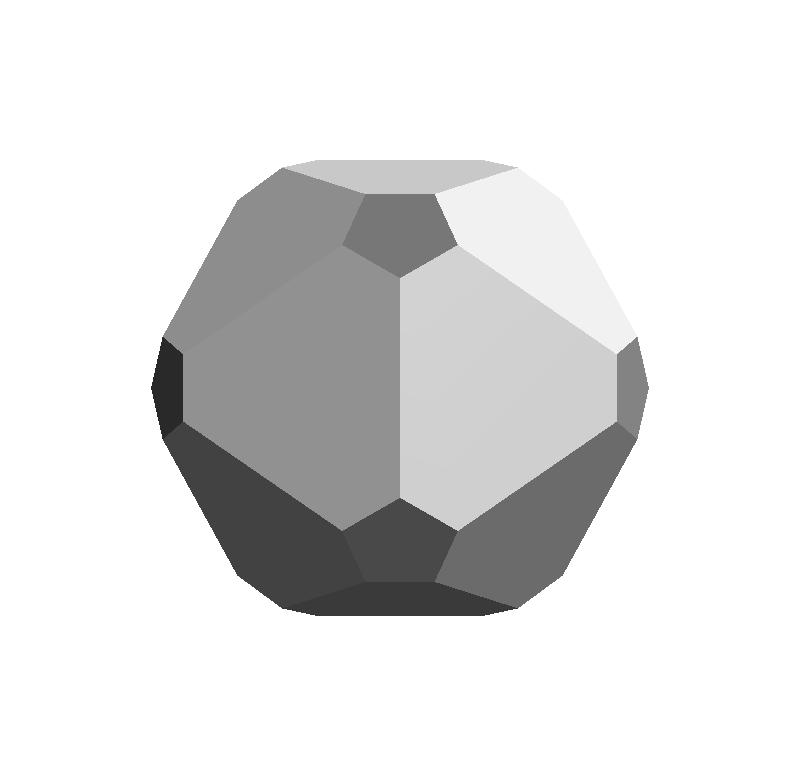

-truncate 0.2

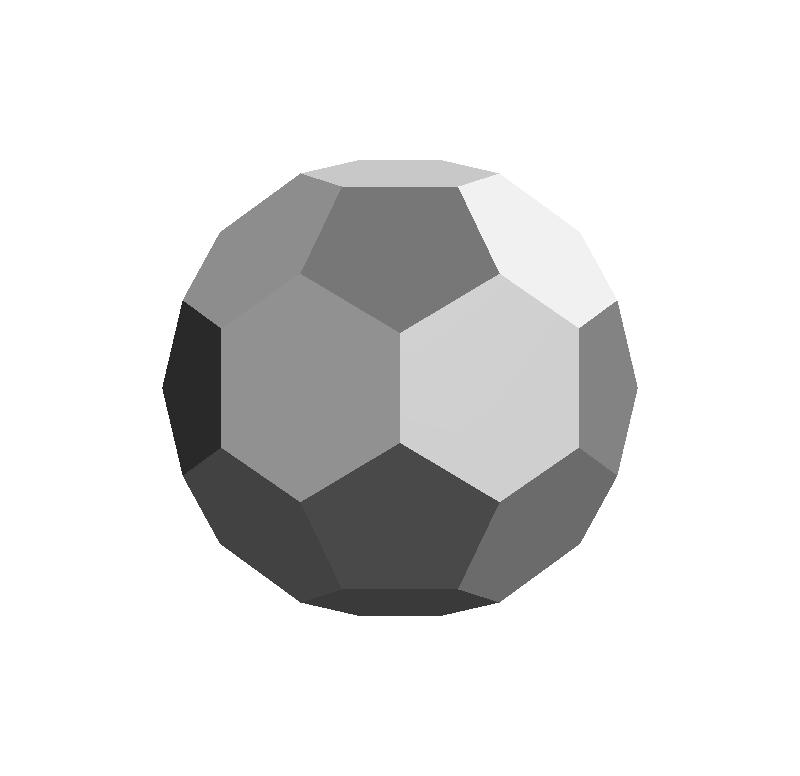

-truncate 0.35

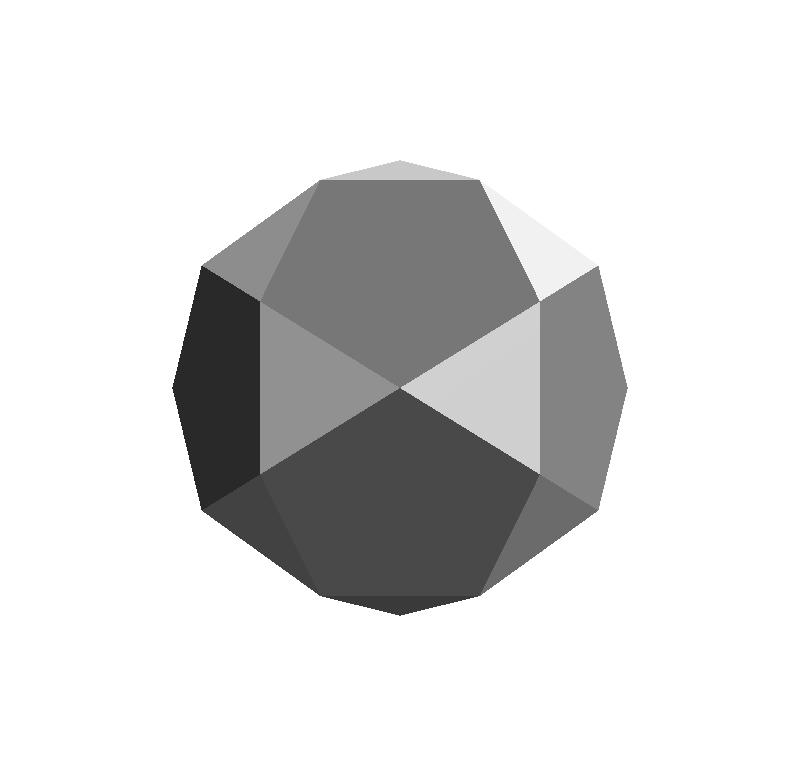

-truncate 0.5

Bevel

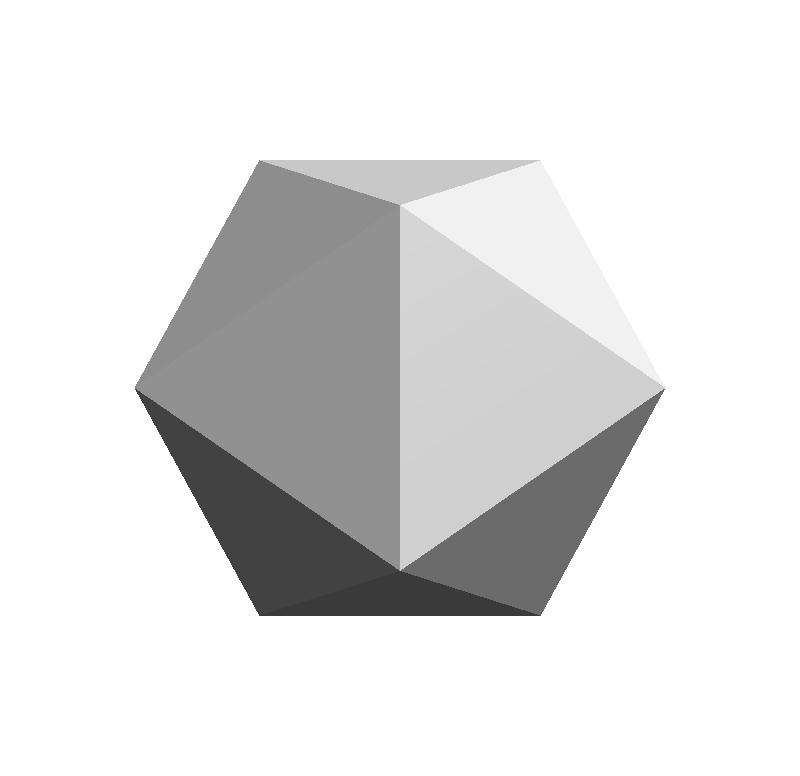

Original

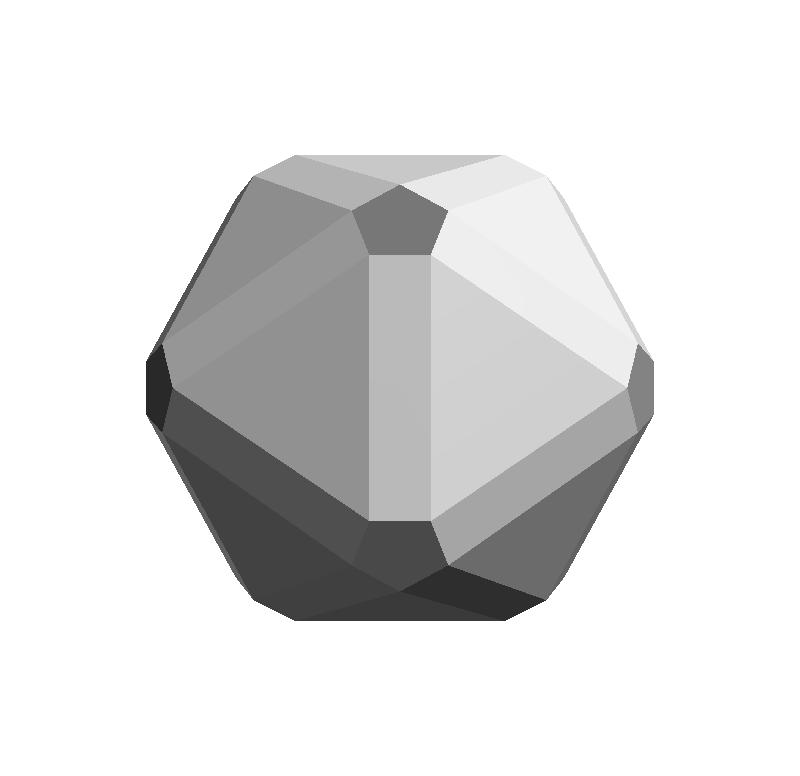

-bevel 0.2

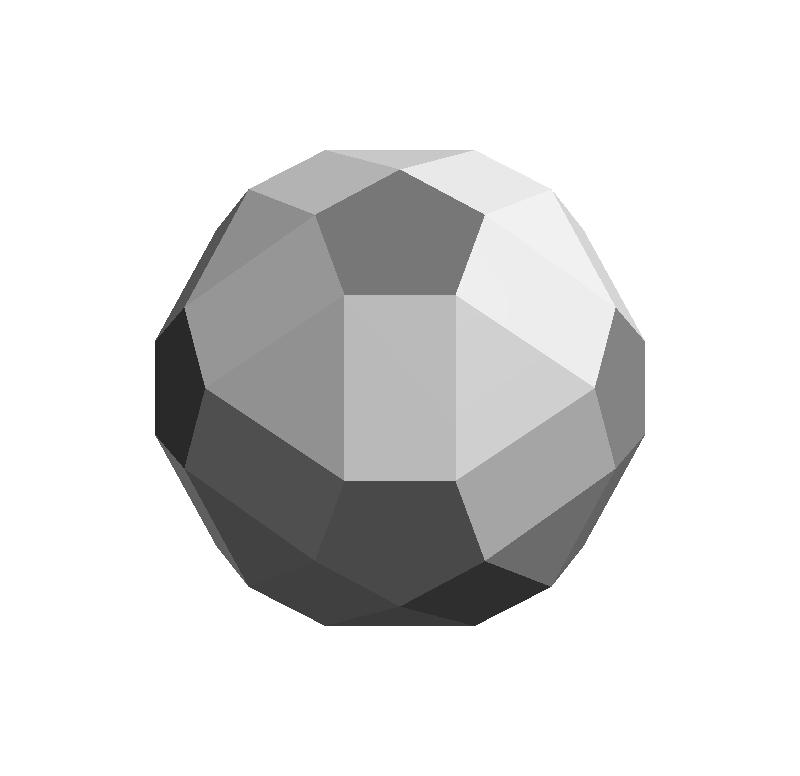

-bevel 0.35

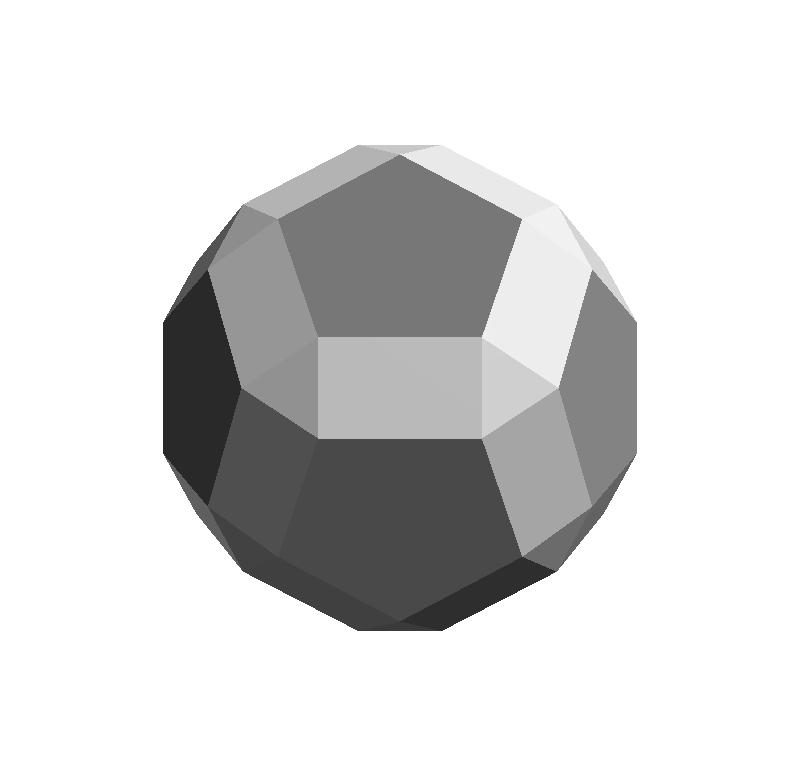

-bevel 0.5

Split Faces

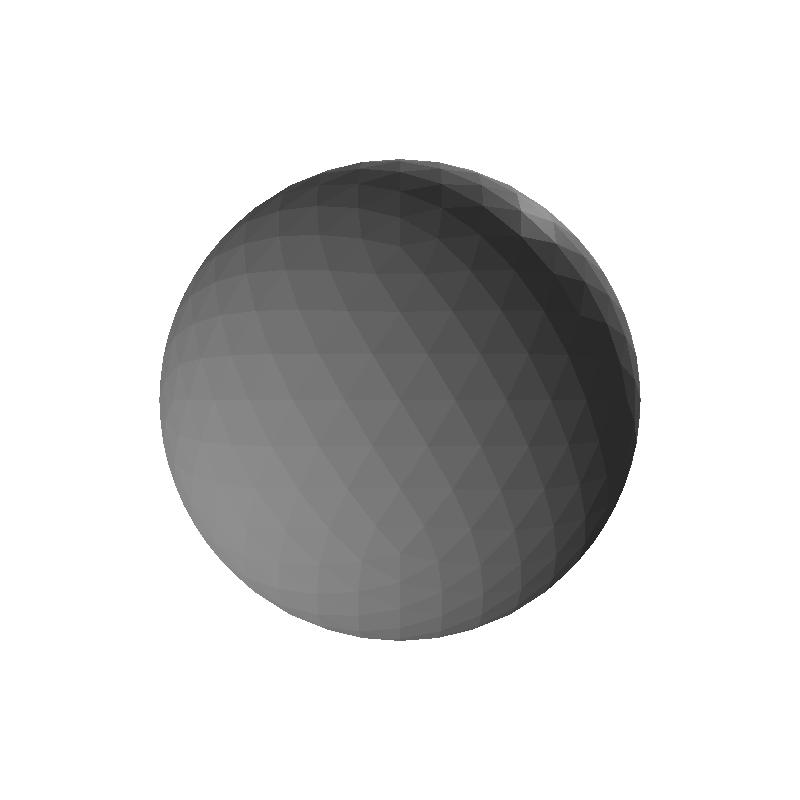

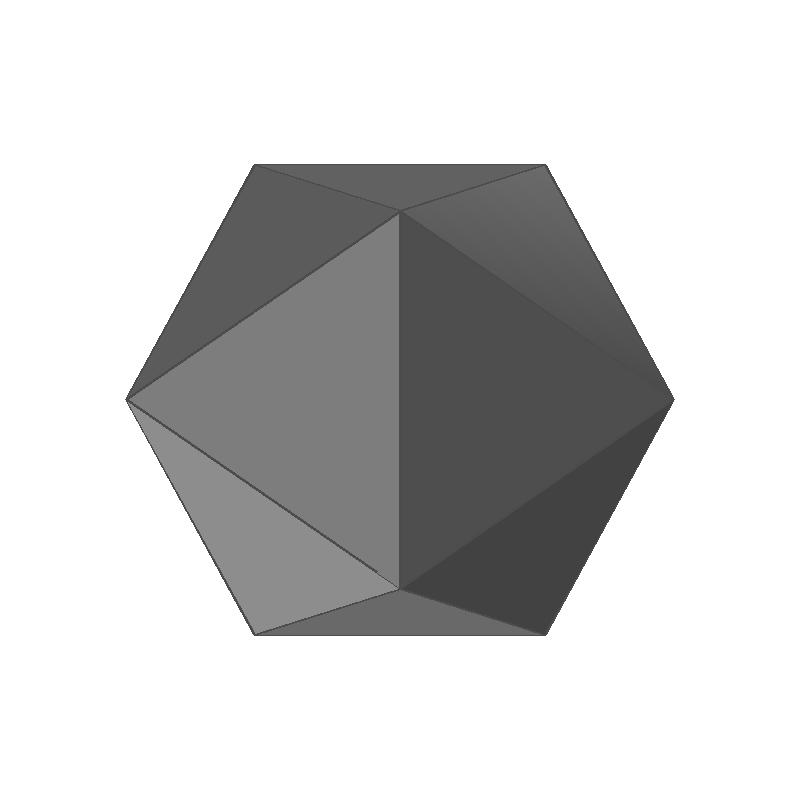

Original		 7.jpg
-splitfaces (showing edges)

Star Faces


Original

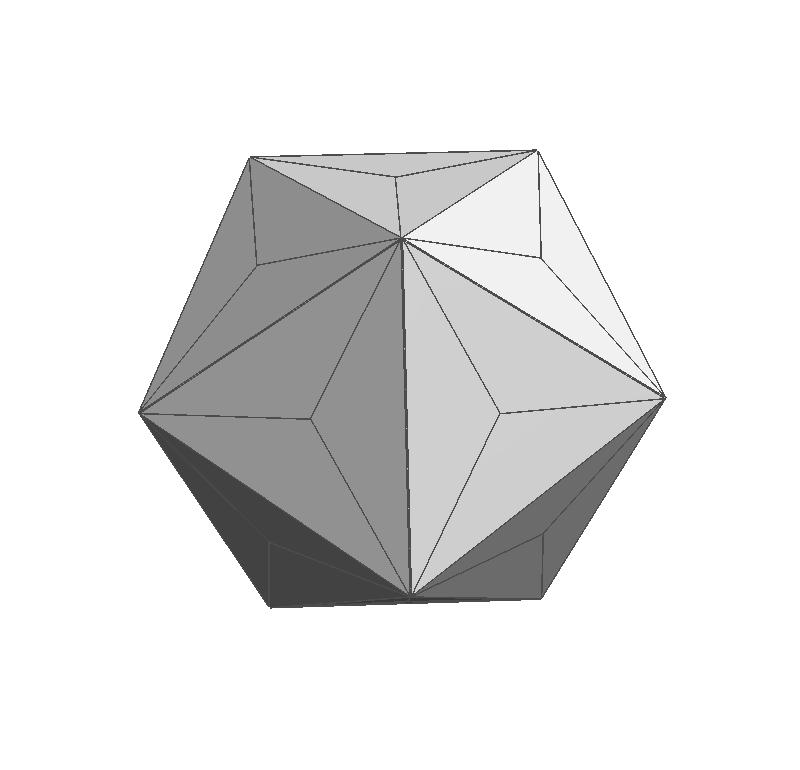

-starfaces 0 (showing edges)

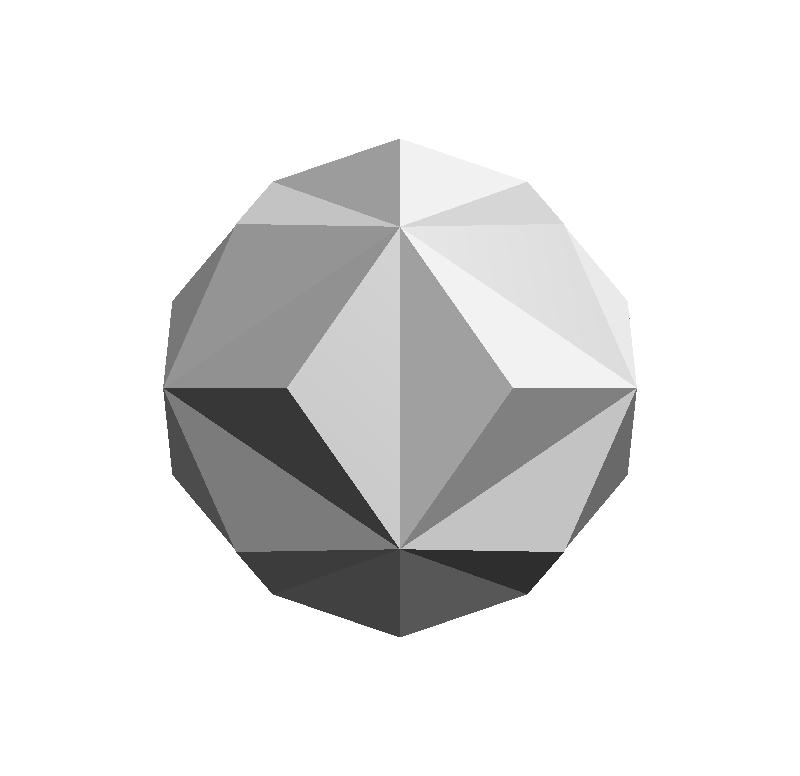

-starfaces 0.2

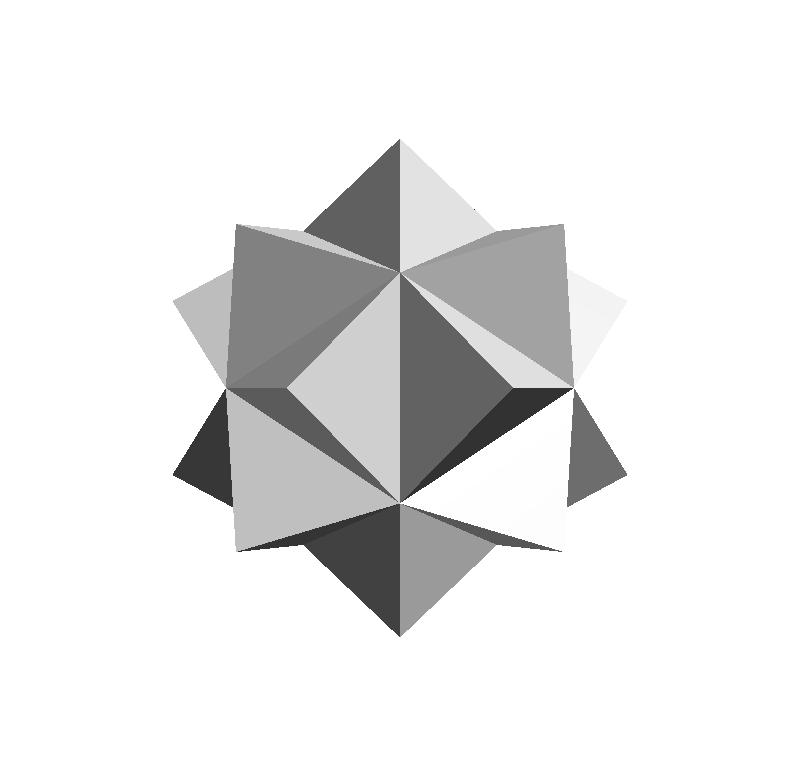

-starfaces 0.5

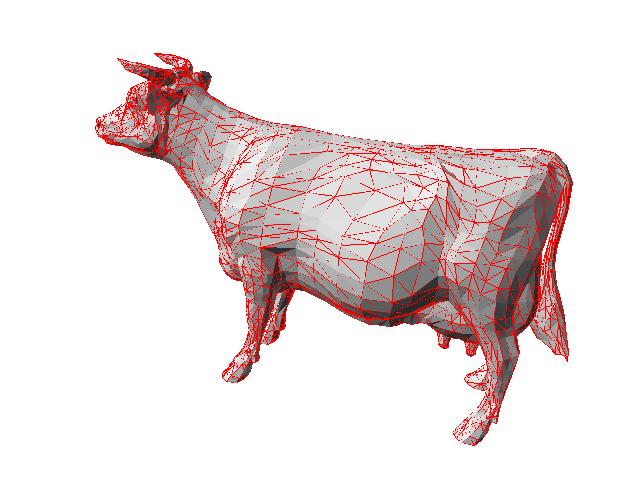

Split long edges

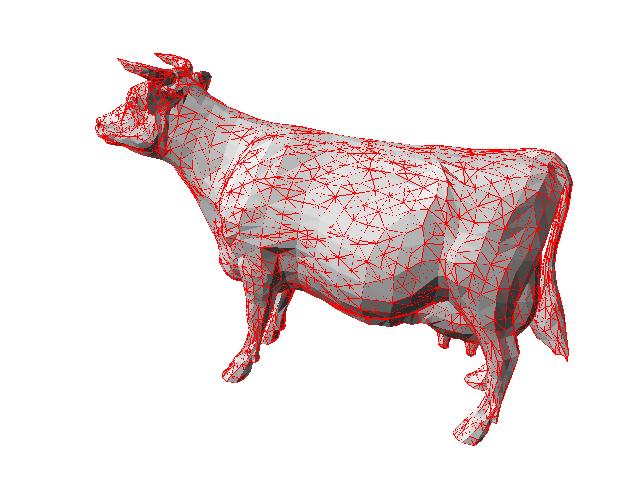

Original		 14.jpg
After

Loop subdivision

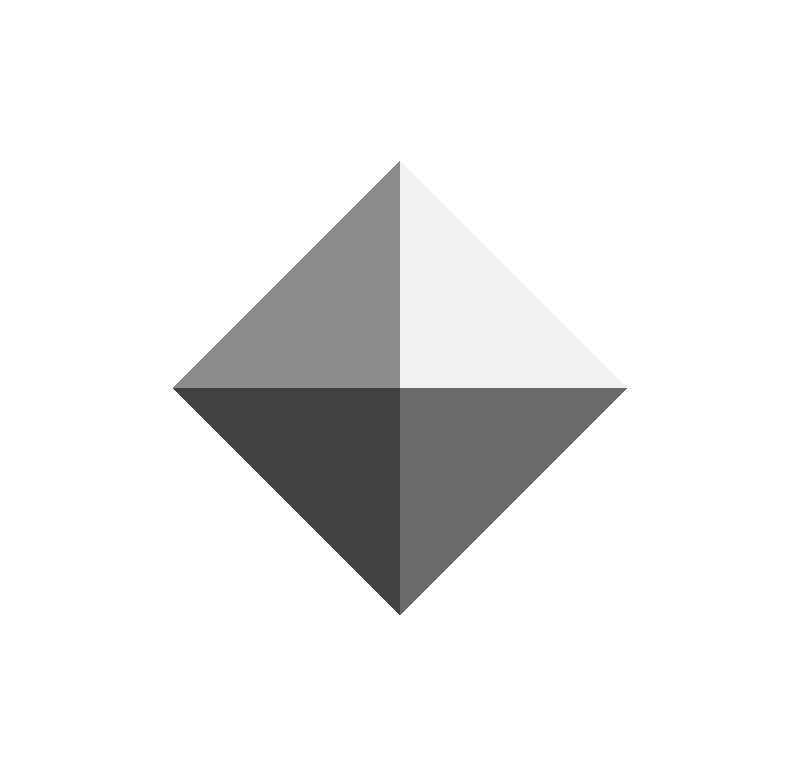

Original

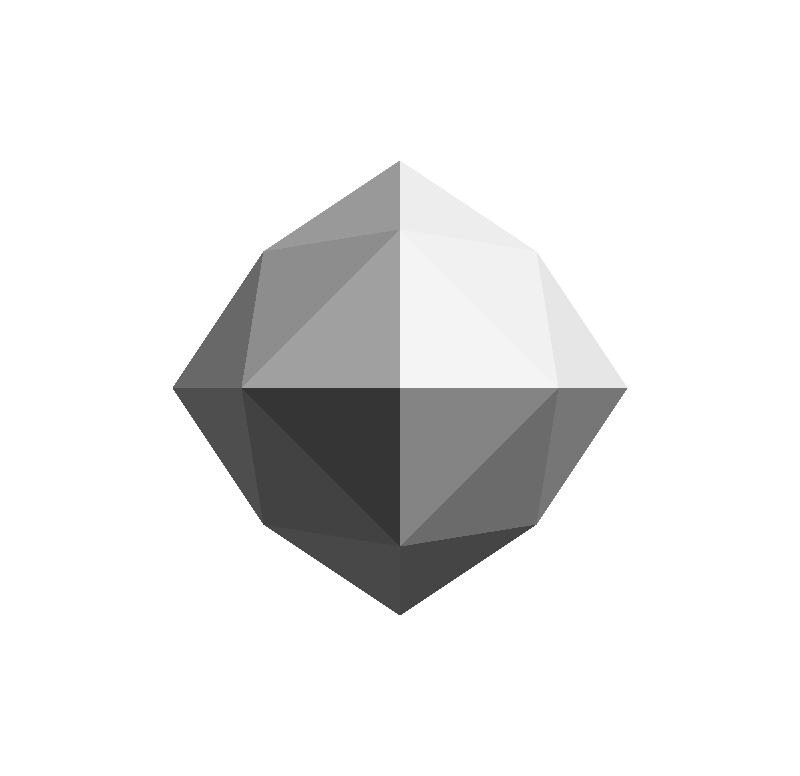

-loop

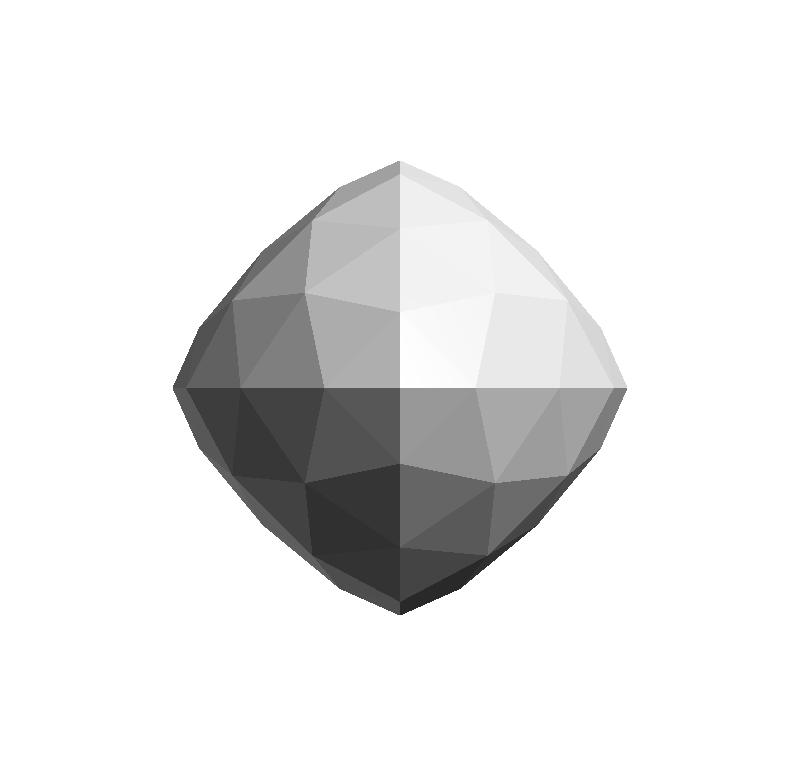

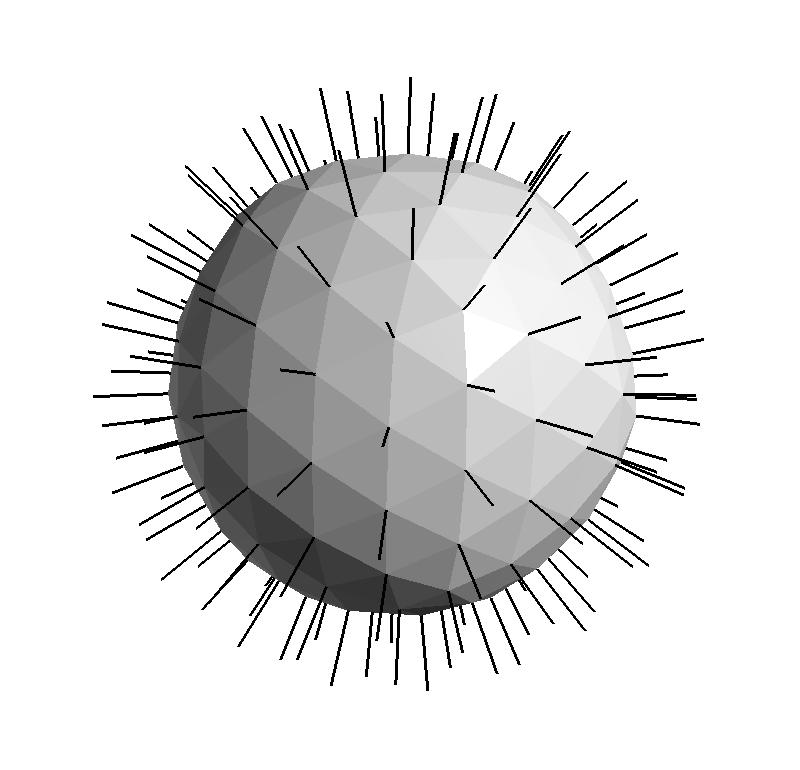

-loop -loop
-loop -loop -loop

Catmull-Clark subdivision

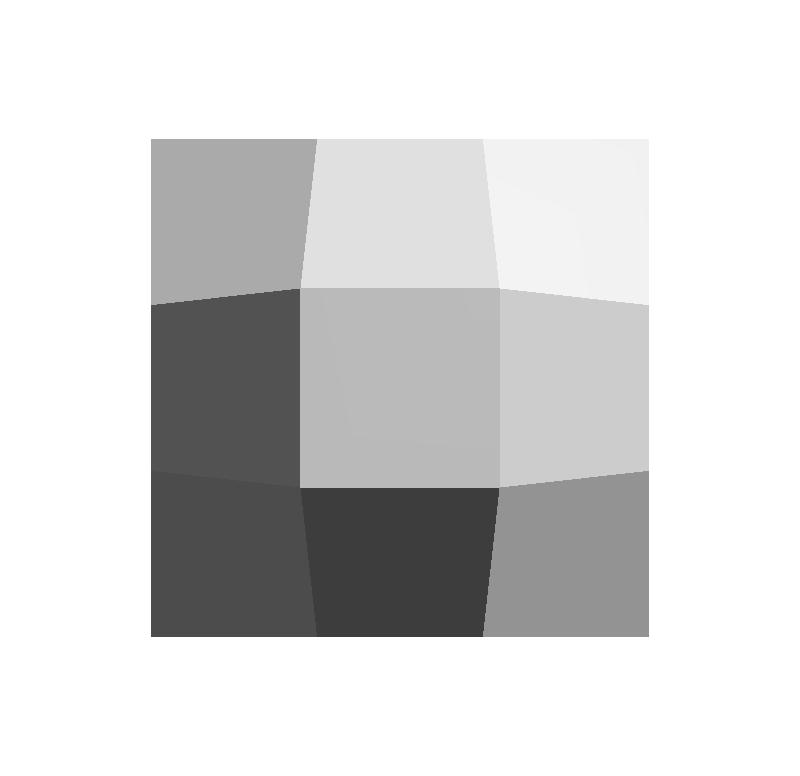

Original

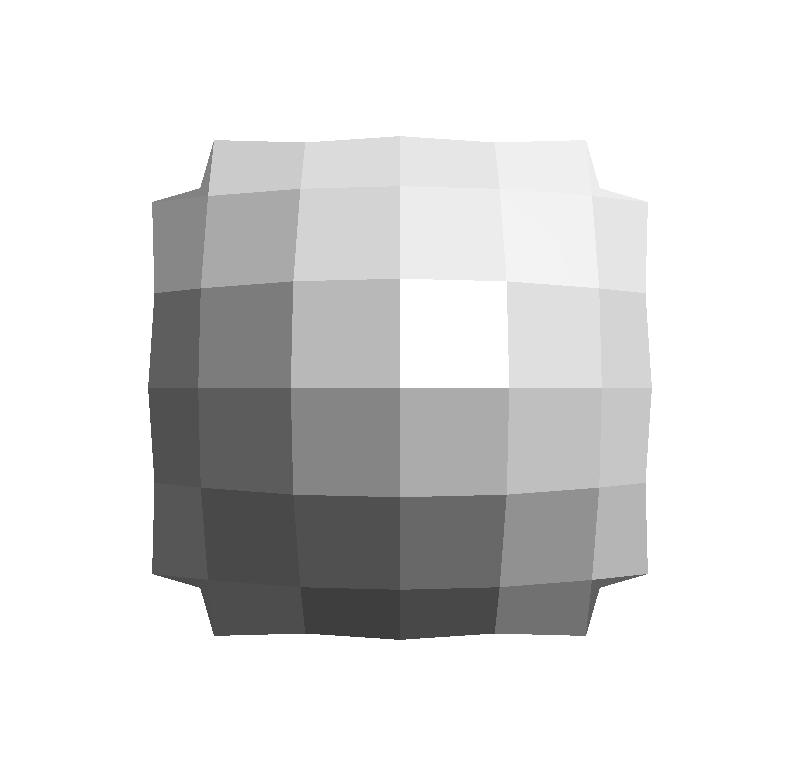

-catmullclark

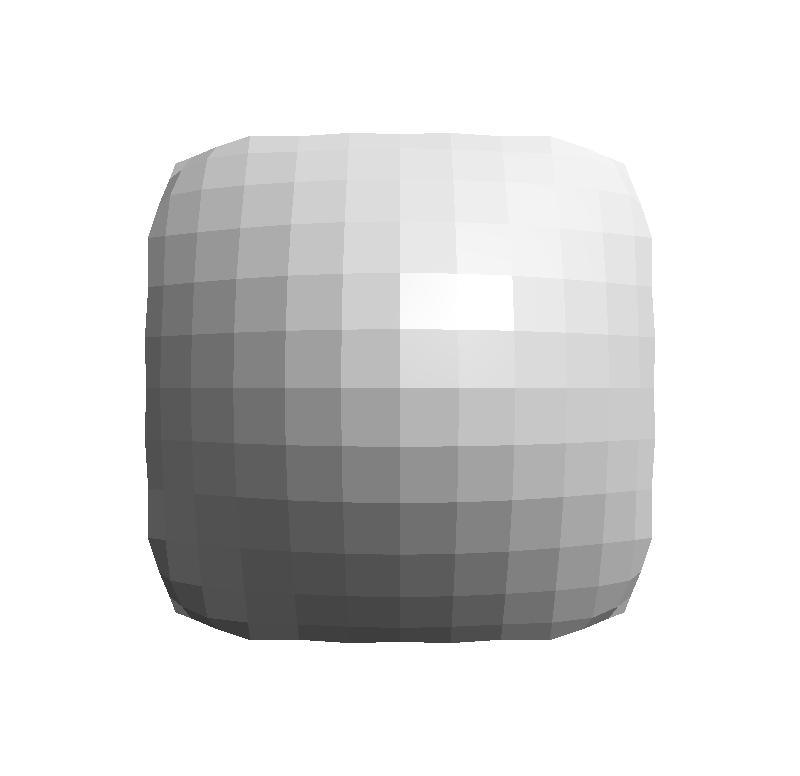

-catmullclark -catmullclark

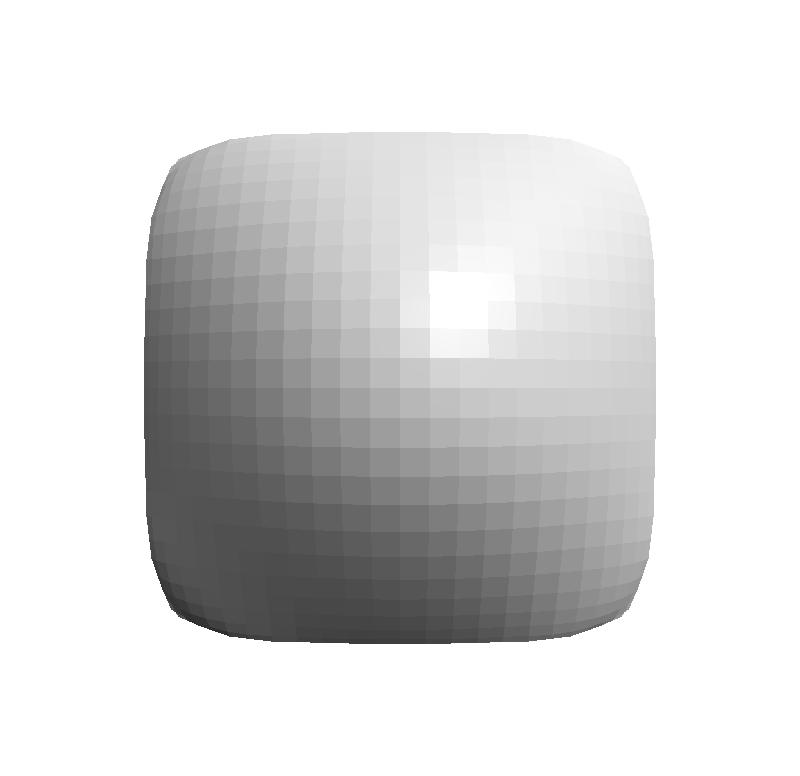

-catmullclark -catmullclark -catmullclark

Surface of Revolution

Input curve defined by x = cos(a)+2; y = 0; z = sin(a) (a = [1/2*PI, 3/2*PI])
Click here to download the curve profile
Resolve around Z axis (stepsize=0.1 radian)

Topological fixup

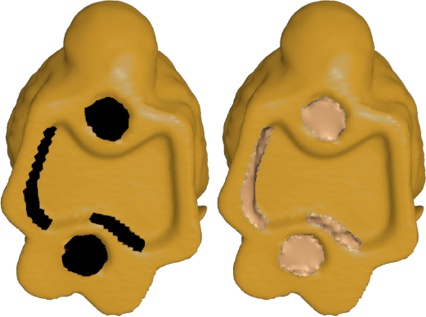

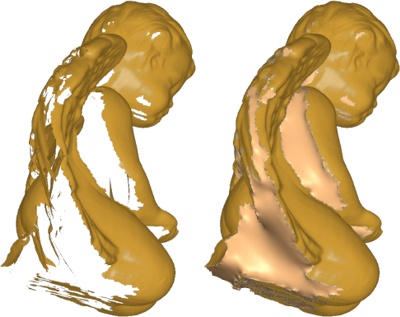

Fill holes - The base of the bunny model (left) and this angel (right) are aquired from scanned data sources, which produces holes in regions invisible to either the camera or laser, requiring hole-filling operations.
Bunny		 anglehole.jpg
Angel

Boolean operations

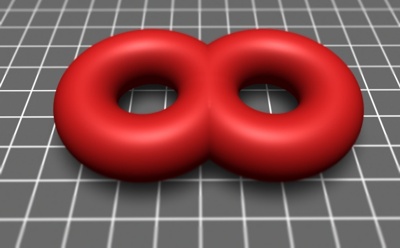

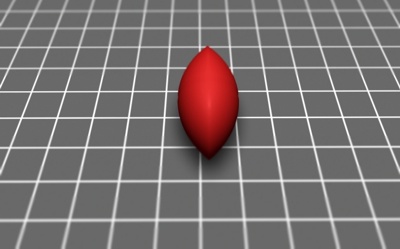

Union		 intersect.jpg
Intersection		 diff.jpg

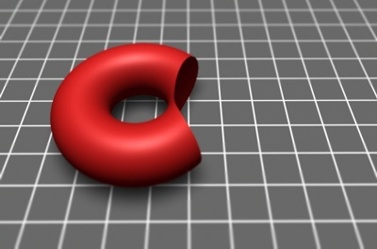

Difference

Crop

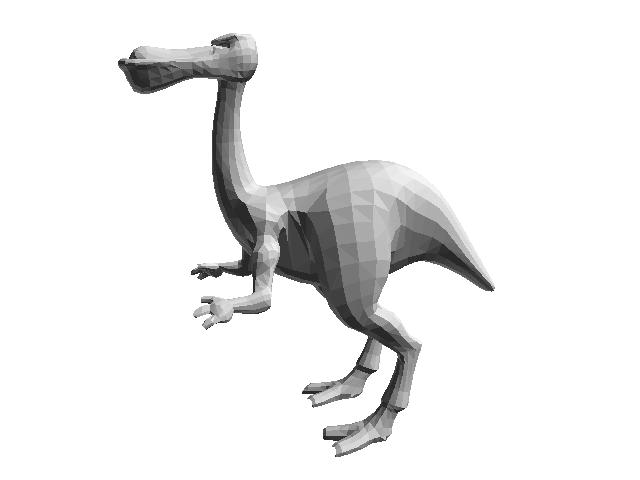

Original dinopet		 20.jpg

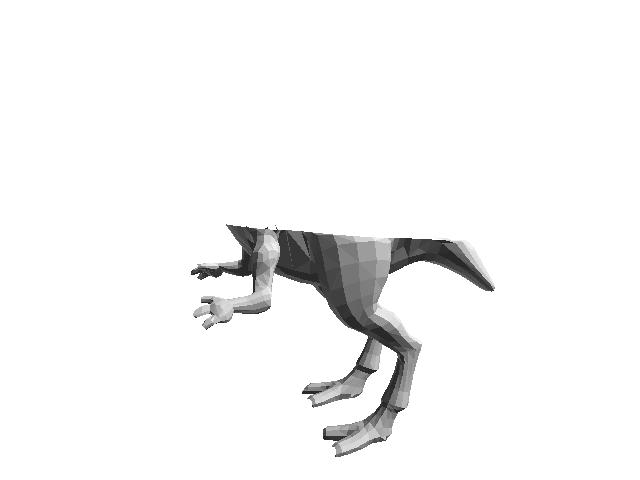

-crop 0.2 -0.3 -2 0.3
