Pattern Recognition

Write a program to recognize line patterns in a given set of points.

Computer vision involves analyzing patterns in visual images and reconstructing the real-world objects that produced them. The process in often broken up into two phases: feature detection and pattern recognition. Feature detection involves selecting important features of the image; pattern recognition involves discovering patterns in the features. We will investigate a particularly clean pattern recognition problem involving points and line segments. This kind of pattern recognition arises in many other applications, for example statistical data analysis.

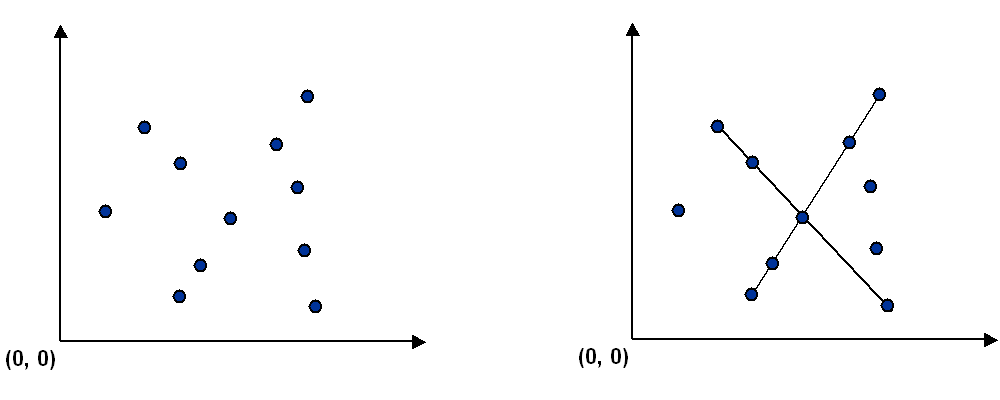

The problem. Given a set of N points in the plane, draw every line segment that connects 4 or more distinct points in the set.

Brute force. Write a program Brute.java that examines 4 points at a time and checks if they all lie on the same line segment, printing out any such line segments to standard output and plotting them using standard draw. To get started, you may use the data type Point.java and the client program PointPlotter.java which reads in a list of points from standard input and plots them. You will need to supply additional methods in Point.java in order to support the brute-force client, including checking whether three or four points lie on the same line. Implement the following immutable Point API:

public class Point implements Comparable<Point> {
   public final Comparator<Point> BY_SLOPE_ORDER;                          // compare points by slope

   public static boolean areCollinear(Point p, Point q, Point r)           // are the three points collinear?
   public static boolean areCollinear(Point p, Point q, Point r, Point s)  // are the four points collinear?

   public Point(int x, int y)                                              // construct the point (x, y)
   public void draw()                                                      // draw this point
   public void drawTo(Point that)                                          // draw the line segment from this point to that point
   public int compareTo(Point that)                                        // is this point lexicographically smaller than that one?
   public String toString()                                                // string representation
}

The constuctor, draw(), drawTo(), and toString() methods are provided. Do not modify.
The areCollinear() methods should take three or four points and return true if they are collinear, false otherwise. These methods should work even if two or more argument points are equal.
The compareTo() method should compare points by their y-coordinates, breaking ties by their x-coordinates.
The BY_SLOPE_ORDER comparator should compare points by the slopes they make with this point. If two points make the same slope, break ties by their natural order. Consider vertical line segments as having slope positive infinity. Consider the line segment between a point and itself as having slope negative infinity.

A sorting solution. Remarkably, it is possible to solve the problem much faster than the brute-force solution described above. Given a point p, the following method determines whether p participates in a set of 4 or more collinear points.

Think of p as the origin.
For each other point q, determine the slope it makes with p.
Sort the points according to the slopes they makes with p.
Check if any 3 (or more) adjacent points in the sorted order have equal slopes with respect to p. If so, these points, together with p, are collinear.

Applying this method for each of the N points in turn yields an efficient algorithm to the problem. The algorithm solves the problem because points that have equal slopes with repsect to p are collinear, and sorting brings such points together. The algorithm is fast because the bottleneck operation is sorting.

Write a program Fast.java that implements this algorithm. Your program should use space proportional to N.

Input format. Read the points from standard input. The input consists of an integer N, followed by N pairs of integers (x, y), each between 0 and 32,767.

% more input6.txt       % more input8.txt
6                       8
19000  10000             10000      0
18000  10000                 0  10000
32000  10000              3000   7000
21000  10000              7000   3000
 1234   5678             20000  21000
14000  10000              3000   4000
                         14000  15000
                          6000   7000

Output format. Print to standard output the line segments that your program discovers in the format below (number of collinear points in the line segment, followed by the points in the order in which they appear on the line segment).

% java Brute < input8.txt
4: (10000, 0) -> (7000, 3000) -> (3000, 7000) -> (0, 10000)
4: (3000, 4000) -> (6000, 7000) -> (14000, 15000) -> (20000, 21000)

% java Brute < input6.txt
4: (14000, 10000) -> (18000, 10000) -> (19000, 10000) -> (21000, 10000)
4: (14000, 10000) -> (18000, 10000) -> (19000, 10000) -> (32000, 10000)
4: (14000, 10000) -> (18000, 10000) -> (21000, 10000) -> (32000, 10000)
4: (14000, 10000) -> (19000, 10000) -> (21000, 10000) -> (32000, 10000)
4: (18000, 10000) -> (19000, 10000) -> (21000, 10000) -> (32000, 10000)

java Fast226 < input8.txt
4: (10000, 0) -> (7000, 3000) -> (3000, 7000) -> (0, 10000)
4: (3000, 4000) -> (6000, 7000) -> (14000, 15000) -> (20000, 21000)

% java Fast < input6.txt
5: (14000, 10000) -> (18000, 10000) -> (19000, 10000) -> (21000, 10000) -> (32000, 10000)

Also, plot the points and the line segments, using standard draw. Using the Point data type supplied, p.draw() draws the point p and p.drawTo(q) draws the line segment from p to q. You should have exactly one call to drawTo() for each line segment discovered. Before drawing, use setXscale(0, 32768) and setYscale(0, 32768) to rescale the coordinate system. Do not change the pen color with setPenColor() or the pen size with setPenRadius().

For full credit, do not print permutations of points on a line segment (e.g., if you output p→q→r→s, do not also output s→r→q→p or p→r→q→s). Also, for full credit in Fast.java, do not print or plot subsegments of a line segment containing 5 or more points (e.g., if you output p→q→r→s→t, do not also output p→q→s→t or q→r→s→t); you may print out subsegments in Brute.java.

Analysis. Estimate (using tilde notation) the running time (in seconds) of your two programs as a function of the number of points N. Provide empirical and mathematical evidence to justify your two hypotheses.

Deliverables. Submit the files: Brute.java, Fast.java, and Point.java. Finally, submit a readme.txt file and answer the questions.
