Overview

In this assignment you will animate motions for an articulated figure. You will be given an articulated 3D model and sets of keyframes specifying the orientations of articulated joints at specific time steps. Your job is to interpolate the keyframes smoothly over a time interval and display the articulated figure in an OpenGL window so that it performs animated actions (e.g., walks, dances, etc.) in real time.

What You Have to Do

The assignment is worth 20 points. The following is a list of features that you may implement. The number in parentheses corresponds to how many points each item is worth. Options in bold are mandatory. You must implement two programs: a keyframe editor and a keyframe animator.

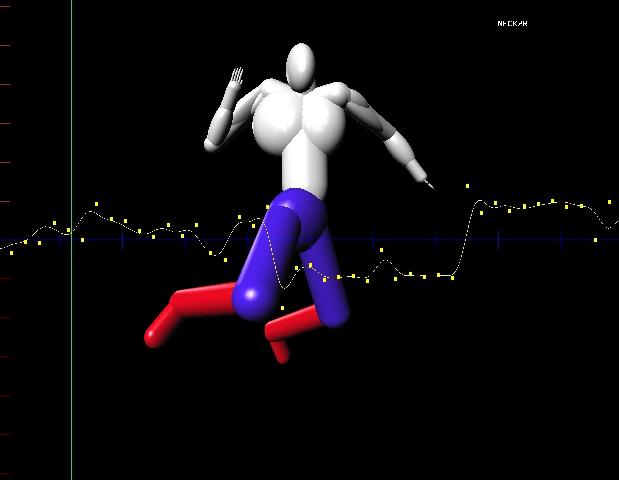

The keyframe editor is a program that allows a user to edit keyframe parameter values interactively while displaying a smooth curve interpolating the data.  should read in a .key file specifying a sequence of values for each of several named parameters at a sequence of uniformly spaced time steps and open an OpenGL display window. You should allow the user to select any of the parameters from a pull-down menu and draw a curve through the keyframe values for that parameter.  The user should be allowed to drag the keyframe values up and down while updating the curve in real time. Finally, you should allow the user to save the new keyframe values to a new .key file.  An overview of the .key file syntax can be found here, and a parser is implemented in the KeyFile::KeyFile (char* fileName) function.

• (4) Write a keyframe editor that allows a user to select a parameterized joint from a .key file using a pull-down and displays a piecewise linear curve through the keyframe values for that joint in an OpenGL window.
• (2) Augment your keyframe editor with the ability to drag keyframe values up and down for the selected joint interactively while the curve is updated in real time. Provide a key stroke or menu item to save the edited keyframe values to a new .key file.
• (2) Modify your keyframe editor to draw the curve for each keyframe parameter using a piecewise cubic Catmull-Rom spline.
• (2) Implement the ability to resample your piecewise cubic Catmull-Rom curves at a specified number of regular intervals and generate a new .key file with the corresponding resampled value information.
• (?) Impress us with something we hadn't considered...

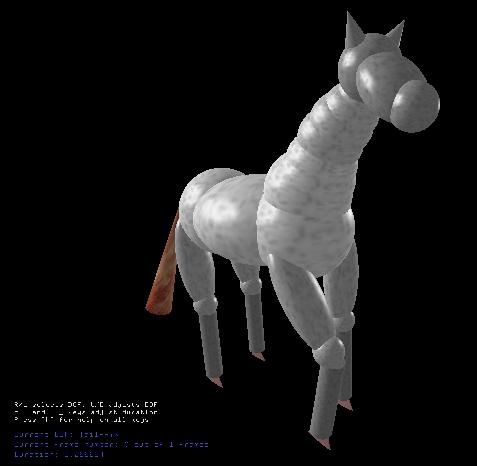

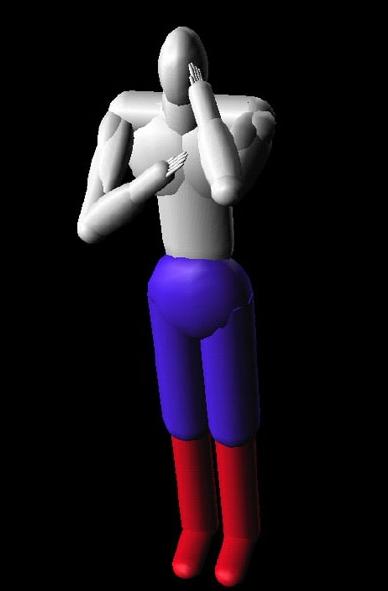

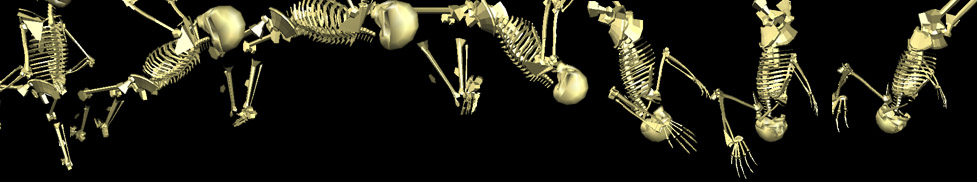

The keyframe animator is a program that animates motions of an articulated figure according to a specified set of keyframes. The input to the program will be a .ray file specifying an articulated figure as a hierarchy of limbs connected by parameterized joints, specified by a new .ray file command, called #joint_begin ... #joint_end, which is similar to #group_begin ... #group end. The resulting scene graph is a hierarchy of rigid-body links connected by parameterized joints, each of which represents a single-parameter transformation (e.g., rotation) to be applied to its subtree. A .key file can be included (via the #key_file command) to specify the value of each parameterized joint at specified time steps.  Your job is to write a real-time OpenGL program that animates and draws the articulated object described by the .ray file according to the keyframes specified in the .key file. An overview of the new .ray file syntax can be found here.

• (2) Create at least one interesting .ray file containing at least 10 parametrized joints.
• (2) Create an associated .key file that defines an interesting motion for your new .ray file (e.g., a pole vault).
• (2) Modify the void KeyFile::setParameterValues(float time) method to set all parameters at each animation time step using linear interpolation.
• (2) Modify the void KeyFile::setParameterValues(float time) method to set all parameters at each animation time step using interpolation with piecewise cubic Catmull-Rom splines.
• (1) Implement the ability to dump the frame buffer to a sequence of images corresponding to uniformly space time steps. Demonstrate this feature by making a movie of the new animation you've created.
• (1) Make the keyframe animation sequence loop smoothly by fitting a closed spline through the keyframe data. Demonstrate this feature with a repeating walk cycle.
• (1) Update the Scene structure to allow for a file that specifies the position, and direction, of a camera at regular intervals in time and update the position and direction of the camera appropriately.
• (2) Add the ability to composite two motions specified in separate .key files onto the same actor at the same time. You may want to augment the .key files to include a #start time, and linearly blend between motions for the subsets of joints in both .key files during transition periods. Demonstrate this feature with a hand waving motion composited onto a walking cycle.
• (2) Add the ability to transition and composite motions in separate .key files under interactive user control.
• (2) Modify the void KeyFile::setParameterValues(float time) method to set all parameters at each animation time step using piecewise cubic uniform Bsplines.  You will have to compute the K Bspline control points whose curve best fits the keyframe data with the provided SVD solver before the animation begins (for any K specified as a program argument).
• (3) Modify the KeyFile::setParameterValues(float time) method to set all parameters at each animation time step using non-uniform cubic Bsplines. Provide a way to let the user adjust the the knot spacing interactively.
• (3) Given two sets of values for the parameters describing the state of the (same) scene-graph, define a measure of how "far" the two sets are from each other. (You may want to consider ignoring the initial parameters which are applied to all the shapes in the scene-graph.). Demonstrate this feature by finding good transition points between two different motions, or by finding good single cycle points within a single motion.
• (3) For blending matrices, blend the matrices using weighted quaternion averaging rather that weighted parameter averaging.
• (?) Impress us with something we hadn't considered...

By implementing all the required features, you get 16 points. There are several ways to get more points:

• implement optional features (as listed above),
• (1) submit an image for the art contest;
• (1) submit a movie for the art contest;
• (1) submit a .ray file and a .key file for the art contest;
• (2) win the art contest
• (?) implement something original.

It is possible to get more than 20 points. However, after 20 points, each point is divided by 2, and after 22 points, each point is divided by 4.

Getting Started

You should use the following skeleton code 4.tar.gz 4.zip, as a starting point for your assignment. It is very similar to the code used in assignments #2. An overview of the code can be found here.

In addition to the code for reading and drawing .ray and .key files, we also provide you with the following code for least squares fitting of data (to be used for fitting BSpline control points):

• SVDFit.[cpp/h/inl]: A high-level wrapper for the SVD class. You will make calls to this to fit splines.
• MatrixMNTC.[cpp/h/inl]: A matrix class used with calls to SVDFit.
• SVD.[cpp/h/inl]: The low level SVD library class used by SVDFit. You won't touch this.

By compiling the provided code, you will get a .ray file viewer suitable for use in the "keyframe animator" portion of the assignment. You can use this code, or any other OpenGL program, as a starting point for the "keyframe editor".

What to Submit

You should submit one archive (zip or tar file) containing:

• the complete source code with Makefile (that works under Linux) or a Visual C project file;
• any images you created for the art contest;
• any movies you created for the art contest;
• any .ray and .key files you created;
• a writeup

The writeup should be a HTML document called assignment4.html which may include other documents or pictures. It should be brief, describing what you have implemented, and how you created your models.

Make sure the code compiles in the Friend workstations under Visual C++ or under Linux. If it doesn't, your grade will suffer.

Always remember the late policy and the collaboration policy.

FAQ

• How exactly should the keyfile editor be incorporated into the project?
  There are actually two ways to do that, and either is acceptable:
  • Write a separate program that reads in a .key file, allows the user to specify one of the joints (a menu option) and an interpolating function, and then plots the associated graph. The user should then be able to move the sample points and watch the graph change interactively. Finally, the user should be able to dump the new sample points out to a file.
  • Alternatively --- and this is harder --- the .key file editor can be incorporated into the ray viewer. The same features have to be implemented but then the user gets to see how the changes to the sample points modify the animation (without having to save the .key file, update the .ray file and then run the animation). In order to get this to work you will have to deal with the fact that multiple .ray files can be included in the initial file, and each of these might have its own .key file. This means that you will have to allow the user to traverse the included .ray file tree and select the appropriate .key file. (This will require a certain amount of recursion.)
  While we believe that the second method is much cooler, we advise you to stick with the first. There are executables in the test directory of the skeleton code called key_editor.exe, animation_viewer.exe (separate editor and viewer) and animator_editor.exe (combined into one application). You can run them by typing:

  animator_editor -src <.ray file>
animator_viewer -src <.ray file>
key_editor -src <.key file>

  The executables implement linear and gaussian interpolation, which should not be too helpful for you, but at least you can get a sense of what the .key file editor should look like in action. (Note that you will get a black screen until you select some parameter.)

  Further note that example animation files (ray files) are in the act directory. The current test programs use relative pathing from the directory that they are run from. (This means that included ray files in the main animation ray file, such as body parts, are referenced from the executable location and not relative to the animation ray file's location which is what one would expect.)
