PRIORITY QUEUES STUDY GUIDE

Heaps. A max (min heap is an array representation of a binary tree such that every node is larger (smaller) than all of its children. This definition naturally applies recursively, i.e. a heap of height 5 is composed of two heaps of height 4 plus a parent. Why do we leave the 0th position empty in the array?

Running times of various PQ implementations. Know the running time of the three primary PQ operations for an unordered array, ordered array, and heap implementation.

Heapsort. A max PQ provides an easy algorithm for putting items in ascending order. We simply insert everything into the PQ and then delete the max until the PQ is empty. By using a binary heap, we can sort in place - this is somewhat subtle.

Heapify. Understand how the bottom up heapify process works. Know that it is linear time.

Recommended Problems

C level

1. Textbook 2.4.2 (assume we'd also like to support delete operations)
2. Textbook 2.4.4
3. Textbook 2.4.11, 2.4.12
4. Textbook 2.4.14
5. Starting from the following max-heap (using the array representation presented in lecture), give the resulting array after each operation:
   X 10 7 4 5 6 2 3 0 1
   (a) After insert(9)
   (b) After delMax(), starting from the original heap (i.e., assuming that (a) has not been performed)
   Answers

       (a) X 10 9 4 5 7 2 3 0 1 6
       (b) X 7 6 4 5 1 2 3 0


B level

1. Continuing from the previous question,
   (c) For implementing a max-priority queue, which of the following are advantages of a resizing-array implementation of a heap over a sorted linked list? Circle all that apply.

       expected time for insert is lower
       expected time for delMax is lower
       expected storage cost is lower
       insert has lower worst-case order of growth
       delMax has lower worst-case order of growth
       max has lower worst-case order of growth


   Answer to above question
   Yes, no, yes, no, no, no


2. Textbook 2.4.7
3. Textbook 2.4.10
4. Textbook 2.4.17, how could you use this technique to find the kth largest item? What would be the runtime of this algorithm in terms of N and k?
5. Textbook 2.4.21
6. Textbook 2.4.27
7. Textbook 2.4.32 (easier than it looks)

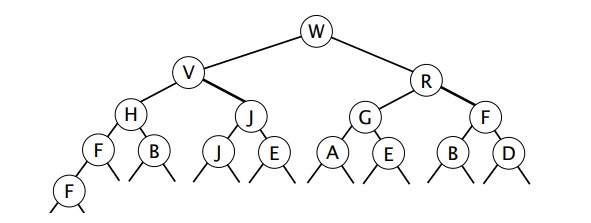

8.

   1. Give the array that represents the correct max heap after deleting the max.
   2. Consider the process of creating a max heap from an arbitrary text file containing N integers. What is the order of growth of the run time of the best possible algorithm for this process?
      Answers

          a.  V J R H J G F F B F E A E B D
          b. Heapification is linear time. Best algorithm is to use bottom up
          heapification, where each node is successively sunk starting with the
          right most element of the array and working backwards to the left.


A level

1. Prove that bottom up heapify runs in linear time.
2. Textbook 2.4.29
3. Textbook 2.4.30 (great problem!)
4. Spring 2012 Midterm #8
5. You have been hired by Deep Thought Enterprises to implement a priority-queue-like data structure supporting the following operations:
   • insert() - an item in O(logN) time.
   • fortytwo() - return the 42nd smallest item in constant time.
   • delFortyTwo() - delete the 42nd smallest item in O(logN) time.
   Explain how you would implement the required functionality, using one or more data structures that we have seen in class. Write pseudocode for each of the three operations listed above. You may assume that N > 42, and omit all checks for smaller N. For full credit, your implementation should support finding the kth smallest item with an order-of-growth running time independent of k. That is, it should be possible to change 42 to some other constant (at compile time) without changing the order-of-growth running time.
   Answers
   Solution #1: Maintain a MaxPQ called firstFortyTwo with 42 items on it, and a MinPQ called theRest with all the rest of the items.

     insert(x):
     firstFortyTwo.insert(x);
     if (firstFortyTwo.size() > 42)
     theRest.insert(firstFortyTwo.delMax());

     fortytwo():
     if (firstFortyTwo.size() < 42) // Check may be omitted in answer
         throw new NoSuchElementException("N < 42");
     return firstFortyTwo.max();

     delFortyTwo():
     if (firstFortyTwo.size() < 42) // Check may be omitted in answer
         throw new NoSuchElementException("N < 42");
     x = firstFortyTwo.delMax();
     if (!theRest.isEmpty())
         firstFortyTwo.insert(theRest.delMin());
     return x;


   Solution #2: Maintain a Red-Black BST, as well as the 42nd-smallest element.

     insert() adds to the RBST, then calls select(42) to find the
             42nd-smallest element, saving it in an instance variable.
     fortytwo() returns the cached 42nd-smallest element.
     delFortyTwo() deletes the 42nd-smallest element from the RBST, then calls
     select(42) to save the new 42nd-smallest element.


   Incorrect solution: Maintain a Red-Black BST, but call select(42) in fortytwo() - takes log(N) time.
