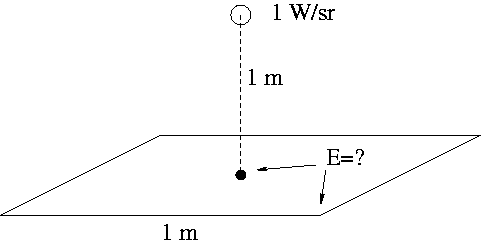

1. A point light source having an intensity of 1 watt per steradian (emitting uniformly in all directions) is 1 meter away from the center of a square patch of surface, of edge length 1 meter. Find the irradiance at the center of the square, and at the corner.




2. Following are two different versions of the rendering equation. For each one, provide a picture and short phrase or equation describing each term (e.g., L(x' -> x'') is the radiance traveling from point x' to point x''). Then, show that the equations are the same by deriving one of them from the other.



Please save/scan your answers into a pdf file named written_exercise1.pdf and submit it to CS dropbox.
