Programming Assignment Checklist: Recursive Graphics

Frequently Asked Questions:  Sierpinski

What preparation do I need before beginning this assignment? Read Sections 2.1–2.3 of the textbook.

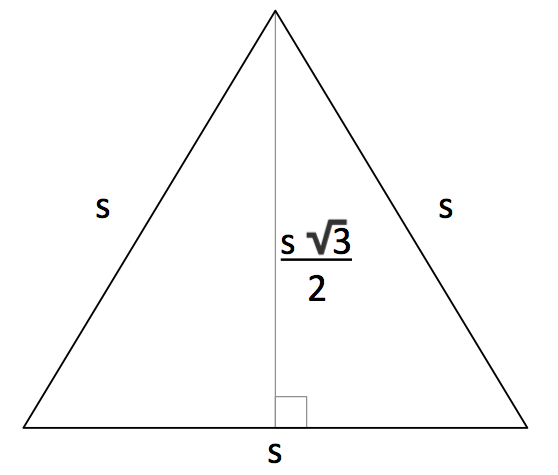

What is the formula for the height of an equilateral triangle of side length s? The height is \(s \sqrt{3} / 2 \).

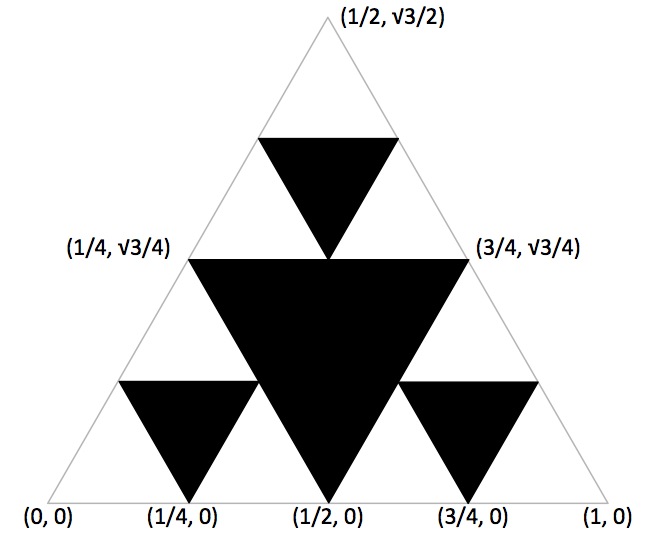

What is the layout of the initial equilateral triangle? The top vertex lies at \((1/2, \sqrt{3} / 2)\) You can use this diagram as a reference.

How do I draw a filled equilateral triangle? Call the method StdDraw.filledPolygon() with appropriate arguments.

I get a StackOverflowError message even when n is a very small number like 3. What could be wrong? This means you are running out of space to store the function-call stack. Often, this error is caused by an infinite recursive loop. Have you correctly defined the base case and reduction step?

May I use different colors to draw the triangles? Yes, you may use any colors that you like to draw either the outline triangle or the filled triangles, provided it contrasts with the white background.

Frequently Asked Questions:  Art

The API checker says that I need to make my methods private. How do I do that? Use the access modifier private instead of public in the method signature. A public method can be called directly by a method in another class; a private method cannot. The only public method that you should have in Art is main().

How should I approach the artistic part of the assignment? This part is meant to be fun, but here are some guidelines in case you're not so artistic. A very good approach is to first choose a self-referential pattern as a target output. Check out the graphics exercises in Section 2.3. Here are some of our favorite student submissions from last year. See also the Famous Fractals in Fractals Unleashed for some ideas. Here is a list of fractals, by Hausdorff dimension. Some pictures are harder to generate than others (and some require trigonometry); consult your preceptor for advice if you're unsure.

What will cause me to lose points on the artistic part? We consider three things: the structure of the code; the structure of the recursive function-call tree; and the art itself.

For example, the Quadricross looks very different from the in-class examples, but the code to generate it looks extremely similar to HTree, so it is a bad choice. On the other hand, even though the Sierpinski curve eventually generates something that looks like the Sierpinski triangle, the code is very different (probably including an "angle" argument in the recursive method) and so it would earn full marks.

Possible ideas include:

• not having the same number of recursive calls per level or having not all recursive branches terminate at the same depth
• not using "level" or using "level" for a secondary purpose
• mutual recursion (recursive functions that call one another)
• interesting overlapping effects based on changes to your code
• interesting shapes using new StdDraw API methods

You will also lose points if your artwork can be created just as easily without recursion (such as Factorial.java). If the recursive function-call tree for your method is a straight line, it probably falls under this category.

May I use GIF, JPG, or PNG files in my artistic creation? Yes. If so, be sure to submit them along with your other files. Make it clear in your readme.txt what part of the design is yours and what part is borrowed from the image file.

My function for Art.java takes several parameters, but the assignment says that I can only read in one command-line argument n. What should I do? Choose a few of the best parameter values and do something like the following:

if      (n == 1) { x = 0.55; y = 0.75; }
else if (n == 2) { x = 0.55; y = 0.75; }
else if (n == 3) { x = 0.32; y = 0.71; }
else if ...

How can I create colors that aren't predefined in standard drawing? It requires using objects that we'll learn about in Chapter 3. In the meantime, you can use this color guide.

Possible Progress Steps:  Sierpinski

These are purely suggestions for how you might make progress. You do not have to follow these steps. Note that your final Sierpinski.java program should not be very long (no longer than Htree, not including comments and blank lines).

• Review Htree.java from the textbook and lecture.

• Write the (non-recursive) function height() that takes the length of the sides in an equilateral triangle as an argument and returns its height. The body of this method should be a one-liner.

  Test your height() function.

• Write a (nonrecursive) function filledTriangle() that takes three real-valued arguments (x, y, and length), and draws a filled equilateral triangle (pointed downward) with bottom vertex at (x, y) of the specified side length.

  To debug and test your function, write main() so that it calls filledTriangle() a few times, with different arguments. You will be able to use this function without modification in Sierpinski.java.

• Write a recursive function sierpinski() that takes four (4) arguments (n, x, y, and length) and plots a Sierpinski triangle of order n, whose largest triangle has bottom vertex (x, y) and the specified side length.

  • Write a recursive function sierpinski() that takes one argument n, prints the value n, and then calls itself three times with the value n-1. The recursion should stop when n becomes 0. To test this function out, write main() so that it takes an integer command-line argument n and calls sierpinski(n). Ignoring whitespace, you should get the following output when you call sierpinski() with n ranging from 0 to 5. Make sure you understand how this function works, and why it prints the numbers in the order it does.

  • Modify sierpinski() so that in addition to printing n, it also prints the length of the triangle to be plotted. Your function should now take two arguments: n and length. The initial call from main() should be to sierpinski(n, 0.5) since the largest triangle has side length 0.5. Each successive level of recursion halves the length. Ignoring whitespace, your function should produce the following output.

  • Modify sierpinski() so that it takes four (4) arguments (n, x, y, and length) and plots a Sierpinski triangle of order n, whose largest triangle has bottom vertex (x, y) and the specified side length. Start by drawing Sierpinski triangles with pencil and paper. Use the picture in the Q+A above to figure out the geometry of where the smaller Sierpinski triangles should go.

  • Remove all print statements before submitting.

Reviewing Your Program

• Your Art.java program must take exactly one integer command-line argument n (which will be between 1 and 7).

• Do not call StdDraw.save(), StdDraw.setCanvasSize(), StdDraw.setXscale(), StdDraw.setYscale(), or StdDraw.setScale(). These method calls interfere with grading. (However, changing the x- or y-scales in Art.java is permitted.)

• Be sure to include a comment just above each method definition explaining what the method does—this will be required in all future assignments as well. Leaving a comment for main() is not required since the header already does basically the same thing.

• Continue to follow the style guidelines from the assignment FAQ.

• Here's a fractal in polymer clay, a fractal cookie, a fractal pizza, a fractal hamantaschen, and puff pastry.
