Lab 6: Whack a Mole!

The game you wrote in the previous lab was quite static and purely textual: nothing happened until the user typed a number into a dialog box, and the only reward was the dubious intellectual satisfaction of using binary search. This lab will build a game that is more graphical and interactive, and less cerebral (if that's the right word in this context). It's a rudimentary version of "shoot 'em up" games like Doom or Quake, though the real inspiration is my favorite arcade game, Whack a Mole. In honor of that, let's call the game WhaM.

In WhaM, an image (in my case, of a prairie dog like the ones here) jumps randomly around the screen. Your job is to hit the image with the mouse as fast as you can; after three hits, your elapsed time is reported, and you get a chance to play again.

No prairie dogs were harmed in the creation of this lab.
Image from www.animalinfo.org/species/rodent/cynomexi.htm.

Free Advice:

• You can do this lab anywhere on any system, but as usual you only get help in the official lab sessions. Either way, read through the instructions carefully and think out your sequence of operations before you begin.
• There are working examples of complete Javascript code in the examples directory; they illustrate correct syntax for common constructs.
• All the clues needed to do the lab are in the instructions. All the code sequences are in the instructions too, though minor modifications are sometimes necessary; use copy and paste to ensure that you transcribe them correctly.
• Use the template provided to organize your code; copy it into your lab6.html file and modify it. Do the modifications a step at a time, verifying each step before going on to the next.
• Do not throw random fragments of code into the file in the hope that they will do something useful; computers are unforgiving, and both syntax and semantics matter.
• Use Firefox or Chrome instead of Internet Explorer or Safari, which are useless for identifying errors. Under Tools, Error Console brings up a window that provides diagnostics about syntax errors and other problems in your program. Read and understand the diagnostics and fix the problems they report.

Part 1: Interacting with a Browser

Second, code can be included as an "event handler" for any object on the web page. The simplest example of this is a button in a form, as seen in an earlier lab. That example used the onClick event to do an operation when the button is pressed, but you can also use onMouseover and onMouseout to perform some action when the mouse enters a region, like an image, and when it leaves. (This is often how "rollovers" are done on web pages.) There are other mouse events as well, but these are sufficient for this lab.

Getting values from Forms

If you want to ask the user to provide a value for your program to use -- such as the speed at which the prairie dog moves -- you can use a prompt dialog box, or you can use a text field in a form as in Lab 3. Here's how the latter possibility might be written:

	<form>
	Speed <input id="interval" type="text" value="1000" size="5"> msec
	</form>

Speed msec

The text field can subsequently be accessed through a rather long name that queries the document about an element with a specified id. You can load the value from the text field into a Javascript variable, or store a new value into the text field, as illustrated in these statements:

	// get the value of interval text field into variable v
	var v = document.getElementById("interval").value;

	// do some computation...

	// store a new interval back into the text field
	document.getElementById("interval").value = v;

Images

Your image is placed on the page with an img tag. The img tag will handle a variety of image encodings, most often a GIF or a JPG. You can use any image that you like -- pop stars, politicians and professors are popular -- but choose one that is not too big, perhaps using Photoshop or GIMP to crop or resize a big image into something smaller.

Moving an Image

    <img id="dog" src="dog.jpg" style="position:absolute; left:200px; top:100px">

Once the image has been given an id, you can use Javascript code to manipulate it, particularly to move it to some other position. For example, to move it to position (300, 200), you can set its left and top positions to new pixel values, using almost the same klunky syntax as in the example above:

	document.getElementById("dog").style.left = "300px";
	document.getElementById("dog").style.top = "200px";

Repetitive Actions: setInterval and clearInterval

The statement setInterval('code', msec) sets up a timer that will execute the code every msec milliseconds. Normally the code is just a function call, and the function itself contains all the operations to be repeated; those operations, which you will put into a function called moveit(), move the image to a new random place. So your code will include a statement like

	setint_val = setInterval('moveit()', document.getElementById("interval").value);

The library function clearInterval() gives you a way to stop the repeating operation; otherwise it would go on forever. The value returned by a call to setInterval is used in a call to clearInterval, like this:

	clearInterval(setint_val);  // stop the calls to moveit

Part 2: Writing Your Program

Your assignment is to implement a version of WhaM. Our minimalist version looks like this before it starts:

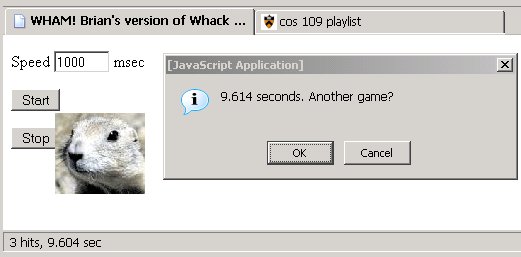

and this shows what it says after the game is played:

You can make yours look more professional if you wish, by laying out the components anywhere and using any sizes, fonts, and colors that you like. For example, you could use Imagemask buttons instead of Form buttons, as you learned how to do in the graphics lab. You could add an image background with <body background="something.jpg">, and you could make the dialog at the end more expansive as well.

This is the specification of what your program must do:

When your program starts up it must display the image that will move around, a Start button, a Stop button, and a way for the user to specify an interval before a new game begins. The default interval must be 1000 msec. When the user presses Start, a new game starts and the selected image is displayed at a random place. The image must move to a new random place once per interval. If the user presses the Stop button, the image must stop moving, and a subsequent Start must start everything over from the beginning. Each time the user successfully hits the image, the program must move the image to a new random place immediately (i.e., not wait for the current interval to end). When the user has hit the image 3 times, the program must display a confirm dialog box that reports the elapsed time and that also says something like "Another game?" If the user pushes OK, that starts a new game immediately (no need to push Start again). If Cancel is pushed, the program stops.

The items are listed in this specification in the order in which it seems easiest to write the program. Do each piece and make it work before worrying about the next one.

Each component of the user interface has a name in the Javascript program; your interface doesn't have to look like the one above, but you must use the specified names for variables and functions ("hit" and "hitcount" are different!). Don't use the name "int" for a variable; it's a reserved word in some versions of Javascript.

Template

It can be hard to keep all the pieces straight, especially when you're new to programming, so we're giving you a template for organizing your program. Your job is to figure out the proper statements to replace the comments in the template. Try to think clearly about what operation or operations each part must do, as implied by the spec above.

This link points to the template lab6.html. Create your own HTML file lab6.html by downloading the template directly (right click in Windows, Option click in Mac) and then start replacing the commented parts by your own code, in the order suggested above. Copy and paste example code from the instructions, then modify it appropriately. Follow this template to organize your page! We've tried to make this orderly and easy to follow. Do not ignore it.

<html>
<title> Your title goes here </title>
<body>
<img id="dog" src="yourimage.jpg"
	style="position:absolute; left:100px; top:60px" onClick='hit()'>
<form>
<input type=button value="Start" onClick='newgame()'>
<input type=button value="Stop" onClick='clearInterval(setint_val); return true;'>
<input type=text id=interval value="1000" size=5> msec
</form>

<script>
// declare your variables here: hitcount, setint_val, starttime, ...

function newgame() {
    // your code to set up for each new game goes here:
	// clearInterval(setint_val) to reset the interval set by a previous game
	// set hitcount to 0
	// call setInterval() to set the interval from the value in the form
	// initialize starttime, the starting time, using new Date()
}

function moveit() {
    // your code to move your image goes here:
	// move the image, using the code given below
}

function hit() {
    // your code to handle each successful hit goes here:
	// move the image with moveit()
	// clearInterval(setint_val) to reset the interval
	// call setInterval() to set the interval again
	// add 1 to hitcount
	if (hitcount >= 3) {
	   // clearInterval() to stop the image from moving
	   // compute the elapsed time (make another call to new Date())
	   // confirm() to display time and ask about another game
	   // if another game is to be played
	   // 	newgame()
	}
}
</script>
</body>
</html>

Draw the Interface

Lay out the components: Start button, Stop button, initial image, and a way to set a new interval (e.g., a form or another button). You can include a background image if you like.

Declare Variables

You will need variables for several values used by your program, including hitcount for the number of times the image has been hit so far, interval for how long the image stays in one place, and starttime for the time at which the current game started. These are used in several places in your program, so declare them at the beginning of your program, before the function definitions:

	var hitcount;
	// etc.

New Random Positions

You have to move the image every time the user successfully hits it with the mouse, and also each time the setInterval mechanism operates. So it's best to write a function that does the move operation and call it from those two places. Write a function called moveit() that will move the image to a new random place each time the function is called. The function will look like this:

function moveit() {
	document.getElementById("dog").style.left = 500 * Math.random() + "px";
	// other statements go here
}

You have to write the analogous line for the vertical position, and put it into moveit() properly. You can also use different values than 500 to make better use of the screen area.

Dealing with Hits

The function hit() has to increment the number of hits and test whether it has reached 3; if not, there's nothing more to do and it can return. If the count is 3, however, hit() should display a dialog box with the elapsed time and ask the user about another game. If the user wants to play again, then everything has to be re-initialized and the game reset to start over. Otherwise, the program is done.

This will require an if statement to compare hitcount to 3, and another if to check the response. Use confirm(), which will pop up a dialog box, then return true if the OK button is pushed and false if the Cancel button is pushed. This lets you write the if statement that will decide whether to play another game or quit, depending on the user's response; for example, it might be some variation on

	if (confirm("Another game?")) {
		// code to play another game
	}

Computing Elapsed Time

  starttime = (new Date()).getTime();  // the time right now, in milliseconds

Good Programming Habits

Use the Javascript Console to warn about syntax errors. Really. We mean it. Use the Javascript Console to warn about syntax errors. Really.

Write small sections at a time, and test as you go, as we have been suggesting above.

Use alert statements to display results as computation proceeds, or just to verify that your program is going where you think it is. These are easy to add and help narrow down problems quickly.

Add comments to your code to remind yourself of what some statement is doing, and perhaps to help the grader figure out what you had in mind as well. You can also "comment out" alert statements by sticking // at the beginning of the line; this leaves the code there for future use but it doesn't affect the program until you uncomment it.

Indent your code the way it has been shown in class, and the way it appears in the instructions. Indenting the statements helps you see quickly what's included in a function or a condition or a loop; you should always maintain consistent indentation.

Part 3: Finishing up

Make sure that you have implemented what we asked for, listed above. When we grade, we will be looking to see that your program works, that it's reasonably cleanly written (properly indented, for instance), and whether you did anything special to make it more than the bare minimum.

It is a good idea to check with one of the lab assistants to make sure that they have seen your program in its working state, that your file has been properly saved, and that you are uploading the right file for grading. Mail the file to yourself as well and be sure that it arrived safely. Do all of these before you leave the lab or turn off your machine.

When everything is working, then

Upload lab6.html to the CS dropbox for Lab 6.
