COS 226 Exercises on Shortest Paths

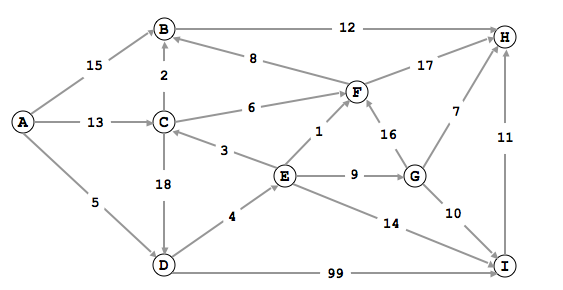

  1. Consider the following weighted directed graph.

    weighted digraph

    Run Dijkstra's single source shortest path algorithm on the above digraph using C as the source. Give the order in which the vertices are removed from the priority queue. Note that A is not reachable from C, so it is never added (and thus never removed) from the priority queue.


    0    1    2    3    4    5    6    7
    ------------------------------------
    C


  2. Also give the distance of the shortest path from C to each vertex v (except A and C) and the last edge on the shortest path to v.


    v        distTo[v]       edgeTo[v]
    --       ---------       ---------

    A        infinity          null

    B

    C            0             null

    D

    E

    F

    G

    H

    I
