COS 126

Theory of Computation Exercises
Assignment


  1. Huntington's disease diagnostic. Huntington's disease (HD) is an inherited and fatal neurological disorder. Although there is currently no cure, in 1993 scientists discovered a very accurate genetic test. The gene that causes Huntington's disease is located on the short arm of chromosome 4, and it has a variable number of (consecutive) repeats of the CAG trinucleotide. These "stuttering" repeats lead to an excess in the amount of the amino acid glutamine in the protein huntington. The normal range of CAG repeats is between 10 and 35. Individuals with HD may have between 36 and 180 repeats. Doctors can use a simple PCR-based DNA test, count the number of repeats, and inform patients whether they are at risk.

     repeats   diagnosis
    0–9  not human
    10–35  normal
    36–39  high risk
      40–180     Huntington's disease
    181–∞ not human

    Write a program Huntingtons.java to read in a human DNA sequence from a file and identify whether the patient is at risk for HD by determining the maximum number of CAG repeats. Output the maximum number of repeats, and an appropriate medical diagnosis based on the table above. The data file format will consist of a sequence of the letters A, C, G, and T, along with arbitrary amounts of whitespace separating the letters. For full credit, your program should use regular expressions and should identify CAG repeats, even if there is intervening whitespace.

    For example, the DNA sequences in test4.txt, test64.txt, chromosome4-hd.txt, and chromosome4-healthy.txt have CAG repeats of sizes 4, 64, 79, and 19, respectively.

    % more test4.txt                         % more test64.txt
    TTTTTTTTTT TTTTTTTTTT TTTTTTTTCA         TTTTTTTTTT TTTTTTTTTT TTTTTTTTTT
    GCAGCAGCAG TTTCAGCAGT TTTTTTTTTT         TTTTTTTTTT TTTTTTTTTT TTCAGCAGCA
    TTTTTTTTTT TTTTTTTTTT TTTTTTTTTT         GCAGCAGCAG CAGCAGCAGC AGCAGCAGCA
    TTTCAGTTTT TTTTTTTTTT T                  GCAGCAGCAG CAGCAGCAGC AGCAGCAGCA
                                             GCAGCAGCAG CAGCAGCAGC AGCAGCAGCA
                                             GCAGCAGCAG CAGCAGCAGC AGCAGCAGCA
                                             GCAGCAGCAG CAGCAGCAGC AGCAGCAGCA
                                             GCAGCAGCAG CAGCAGCAGC AGCAGCAGCA
                                             GCAGTTTTTT TTTTTTTTTT TTTTTTTTTT
                                             TTTTTTTTTT TTTTTTTTTT TTTTTTTTTT

    % java Huntingtons test4.txt             %java Huntingtons test64.txt
    max number of CAG repeats = 4            max number of CAG repeats = 64
    not human                                Huntington's disease


    % java Huntingtons chromosome4-hd.txt    % java Huntingtons chromosome4-healthy.txt
    max number of CAG repeats = 79           max number of CAG repeats = 19
    Huntington's disease                     normal


  2. Turing machine. Design a Turing machine that takes as input two binary integers (separated by the > symbol) and terminates in a yes state if the first integer is strictly greater than the second one, and a no state otherwise. Use only the following four symbols: 0 1 > #.

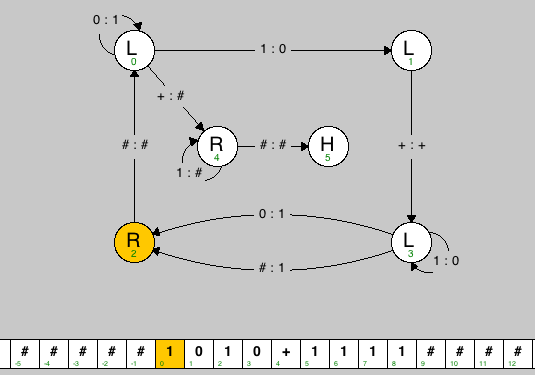

    Use this Turing machine simulator to develop your machine. Your job is to create and submit a text file comparator.tur containing the description of your Turing machine like the one below, but instead of adding the two binary numbers, it should compare them.

    title
    Binary Adder

    description
    K. Wayne, wayne, P01
    Add two binary numbers, and
    leave the result on the tape.

    vertices
    2 R 0.25 0.75
    0 L 0.25 0.25
    1 L 0.75 0.25
    3 L 0.75 0.75
    4 R 0.40 0.50
    5 H 0.60 0.50

    edges
    0 0 0 1  135
    0 1 1 0
    0 4 + #
    1 3 + +
    2 0 # #
    3 2 # 1  0.2
    3 2 0 1 -0.2
    3 3 1 0 -30
    4 4 1 # -135
    4 5 # #

    tapes
    [1] 0 1 0 + 1 1 1 1
    [1] 0 0 + 1 1 1
    [1] 1 0 0 + 1 1
    [1] 0 1 0 + 1 0 0 1 0 1


    The data file is divided into 5 sections (title, description, vertices, edges, tapes), and each section begins with the corresponding name. Each vertex (state) is specified with 4 required values: its name (a string), its type (L, R, Y, N, H), and its x- and y-coordinates (between 0 and 1). The first state listed is the start state. Each edge (transition) is specified with 4 required values: the starting state, the ending state, the symbol to read, and the symbol to write. An optional 5th parameter specifies the curvature with which to draw the edge (straight line by default). Each sample input tape is specified by listing its symbols, separated by spaces. The tape head starts at the symbol delimited by square braces - for this assignment, it should always be the leftmost non-blank character.

    Getting started. The subdirectory theory from the COS126 ftp site contains Grep.java, Harvester.java, In.java and StdOut.java as well as several small test files and two larger files with actual chromosome data for your program for Part 1. There is also the example Turing Machine file, binaryadder.tur. As always, there is a readme.txt for you to complete.

    Submission. Submit Huntingtons.java, comparator.tur, and readme.txt.

    Extra credit. If you based your comparator on binaryadder.tur, then it is very similar to a subtractor. Unfortunately, it would take more than 2n steps to subtract two n-bit numbers. Your challenge is to design a Turing machine that subtracts two positive n-bit numbers in time proportional to n2. Assume the left number on the tape is always larger than or equal to the right number, so the difference will always be greater than or equal to zero. However, do not assume that the two numbers always have the same number of bits. Call your file efficientSubtractor.tur and submit it as an Additional File.


    This assignment was created by Kevin Wayne.
    Copyright © 2004.
