Programming Assignment Checklist: Recursive Graphics

Frequently Asked Questions

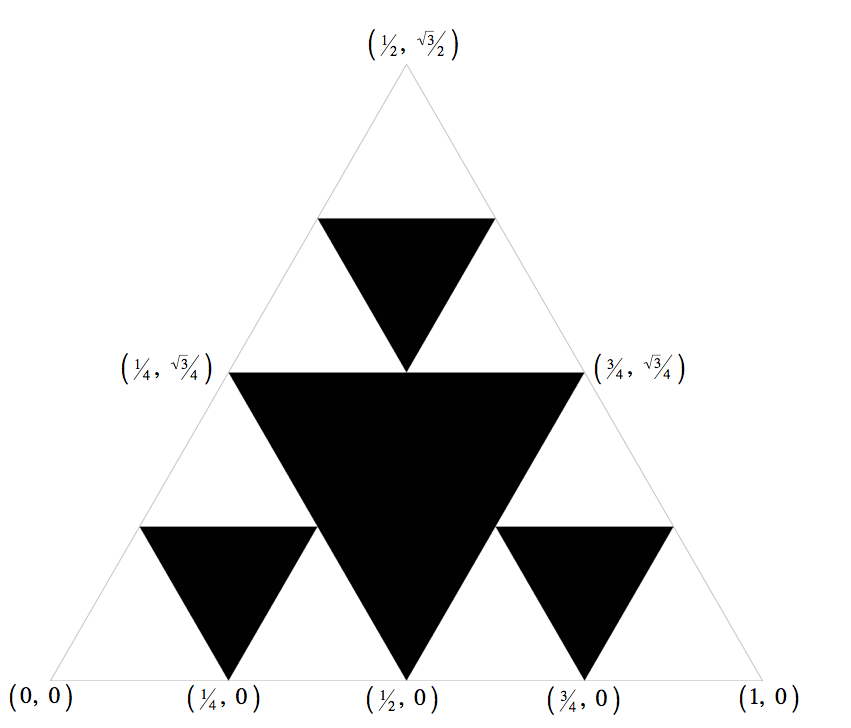

I forget how to do geometry. Any hints? Here are the coordinates of the critical endpoints. Click the image for a bigger version.

How do I draw a filled triangle? Use StdDraw.filledPolygon().

How should I go about doing the artistic part of the assignment? This part is meant to be fun, but here are some guidelines in case you're not so artistic. A very good approach is to first choose a self-referential pattern as a target output. Check out the graphics exercises in Section 2.3. Here are some of our favorite student submissions from Spring '07. See also the Famous Fractals in Fractals Unleashed for some ideas. Here are some more ideas. Some pictures are harder to generate than others (and some require trig); consult a preceptor for advice if you're unsure.

What will cause me to lose points on the artistic part? We'll deduct points if your picture is overly boring or too similar to HTree, Sierpinski or Brownian. For example, replacing the calls in Sierpinski.java from triangles to squares will result in a deduction because the goal is to learn about recursion and you have only changed the non-recursive part. You will also lose points if your artwork could more easily be created without recursion, e.g., it is tail-recursive: a single recursive call at the very end of the function.

Can I use GIF or JPEG files in my artistic creation? Yes. If so, be sure to submit them along with your other files. Make it clear in your readme.txt what part of the design is yours and what part is borrowed from the image file.

My function for Art.java takes several parameters, but the assignment says that I can only read in one command-line argument N. What should I do? Choose a few of the best parameter values and do something like the following:

if      (N == 1) { x = 0.55; y = 0.75; n = 3; }
else if (N == 2) { x = 0.55; y = 0.75; n = 5; }
else if (N == 3) { x = 0.32; y = 0.71; n = 8; }

Can I use the mouse to control input values? Check with your preceptor.

Testing and Submission

readme.txt. Use the following readme file template and answer all questions.

Submission. If you don't follow these instructions, you risk annoying your grader and losing a significant number of points.

• Your Art.java program must take one integer command-line argument N (expect it to be between 0 and 7).
• Don't call StdDraw.save() in either program.
• Don't call StdDraw.setCanvasSize() in either program.

Possible Progress Steps

These are purely suggestions for how you might make progress. You do not have to follow these steps. Note that your final Sierpinski.java program should not be very long (ours is around 15 lines, not including comments and blank lines).

• Review the H-tree from lecture and the text.

• Download StdDraw.java to your working directory.

• Write a (nonrecursive) function triangle() that takes three real-valued inputs (x, y, and size), and draws an equilateral triangle (pointed downward) with bottom vertex at (x, y) and side length size. To debug and test your function, write main() so that it calls triangle() a few times, with different parameters. You will be able to use this function without modification in Sierpinski.java.

• Write a recursive function sierpinski() that takes 4 arguments (n, x, y, and size) and plots a Sierpinski triangle or order n, whose largest black triangle has side length size and bottom vertex (x, y).

  • Write a recursive function sierpinski() that takes one argument n, prints the value n, and then calls itself three times with the value n-1. The recursion should stop when n becomes 0. To test this function out, write main() so that it reads one integer N from the command line and calls sierpinski(N). Excepting the spacing, you should get the following output when you call sierpinski() with N ranging from 0 to 5. Make sure you understand how this function works, and why it prints the numbers in the order it does.

  • Modify sierpinski() so that instead of printing n, it prints the size of the triangle to be plotted. Your function should now take two arguments: n and size. The initial call from main() should be to sierpinski(N, 0.5) since the largest black triangle has side length 0.5. Each successive level of recursion halves the length. Your function should produce the following output.

  • Modify sierpinski() so that it takes 4 arguments (n, x, y, and size) and plots a Sierpinski triangle of order n, whose largest black triangle has side length size and bottom vertex (x, y). Start by drawing Sierpinski triangles with pencil and paper. Use the picture in the Q+A above to figure out the geometry of where the smaller Sierpinski triangles should go.
