COS 126

Traveling Salesperson Problem
Programming Assignment

Due: 11:55pm

Given a set of N points in the plane, the goal of a traveling salesperson is to visit all of them (and arrive back home) while keeping the total distance traveled as short as possible. Write a program to compute an approximate solution to the traveling salesperson problem (TSP), and use it to find the shortest tour that you can, connecting a given set of points in the plane.

Perspective. The importance of the TSP does not arise from an overwhelming demand of salespeople to minimize their travel distance, but rather from a wealth of other applications, many of which seem to have nothing to do with the TSP at first glance. Real world application areas include: vehicle routing, circuit board drilling, VLSI design, robot control, X-ray crystallography, machine scheduling, and computational biology.

Greedy heuristics. The traveling salesperson problem is a notoriously difficult combinatorial optimization problem, In principle, one can enumerate all possible tours, but, in practice, the number of tours is so staggeringly large (roughly N factorial) that this approach is useless. For large N, no one knows an efficient method that can find the shortest possible tour for any given set of points. However, many methods have been studied that seem to work well in practice, even though they are not guaranteed to produce the best possible tour. Such methods are called heuristics. Your main task is to implement the nearest neighbor and smallest increase insertion heuristics for building a tour incrementally. Start with a one-point tour (from the first point back to itself), and iterate the following process until there are no points left.

Point data type. First, create a Point data type that represents a point in the plane. Each Point object should be able to print itself to standard output, plot itself using standard draw, plot a line segment from itself to another point, and calculate the Euclidean distance between itself and another point. You need a class named Point that has the following API:

public class Point (2D point data type)
---------------------------------------------------------------------------------------
       Point(double x, double y)    // create the point (x, y)
String toString()                   // return string representation
  void draw()                       // draw point using standard draw
  void drawTo(Point b)              // draw line segment between the two points
double distanceTo(Point b)          // return Euclidean distance between the two points
Lucky you! In the checklist, there is a link to a class named Point which matches the required API.

Tour data type. Next, create a Tour data type that represents the sequence of points visited in a TSP tour. Represent the tour as a circular linked list of nodes, one for each point. Each Node will contain a Point and a reference to the next Node in the tour. Within Tour.java, define a nested class Node in the standard way.

private class Node {
    private Point p;
    private Node next;
}
Each Tour object should be able to print its constituent points to standard output, plot its points using standad draw, compute its total distance, and insert a new point using either of the two heuristics. Write a class named Tour that has the following API:
public class Tour (TSP tour data type)
---------------------------------------------------------------------------------------
       Tour()                       // create an empty tour
  void show()                       // print the tour to standard output
  void draw()                       // draw the tour
double distance()                   // return the total distance of the tour
  void insertSmallest(Point p)      // insert p using the smallest insertion heuristic
  void insertNearest(Point p)       // insert p using the nearest neighbor heuristic

Input format. The input format will begin with two integers w and h, followed by pairs of real-valued x and y coordinates. All x coordinates will be real numbers between 0 and w; all y coordinates will be real numbers between 0 and h. As an example, the file tsp4.txt contains the following data

600 600
532.6531 247.7551
 93.0612 393.6735
565.5102 590.0000
 10.0000  10.0000

Testing. Many test data files are also available. Once you implement Point and Tour, use the client program NearestInsertion.java to run the nearest insertion heuristic and print the resulting tour and its distance to standard output. Program SmallestInsertion.java is analogous but runs the smallest insertion heuristic. Programs NearestInsertionDraw.java and SmallestInsertionDraw.java are similar but they also plot the results using StdDraw. The programs read data from standard input. So, you should invoke as follows.

% java NearestInsertion < tsp10.txt

What to submit. Submit the files readme.txt, Tour.java, and Point.java.

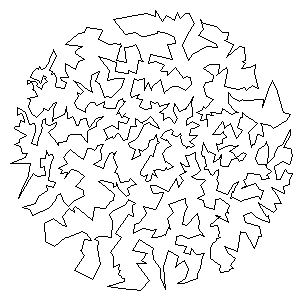

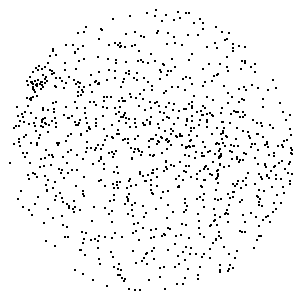

Contest and extra credit. Implement a better heuristic. For example, observe that any tour with paths that cross can be transformed into a shorter one with no crossing paths: add that improvement to your program. Here are some other ideas. We will award a special prize to whomever finds the shortest tour around the 1000-point set.

This assignment was developed by Bob Sedgewick and Kevin Wayne.
Copyright © 2000 Robert Sedgewick
