A Guide to Programming Intel IA32 PC Architecture

Kai Li, Princeton University
First draft, 1999
Revised 2003

1 Intel IA32 Processors
    1.1 Modes
    1.2 Register Set
    1.3 Addressing
    1.4 Processor Reset

2 Assembly Programming
    2.1 Instruction Syntax
    2.2 Memory Operands
    2.3 Frequently Used Instructions
    2.4 Assembler Directives
    2.5 Inline Assembly
    2.6 Program Structure and Calling Convention

3 BIOS Services
    3.1 Display Memory
    3.2 Write to Display at Current Cursor
    3.3 Read from Diskette

The goal of this documentation is to provide a brief description of the Intel IA32 PC architecture, a brief introduction to assembly programming using the Gnu assembler, and a small set of BIOS services that can be used in the course projects.

References:

1  Intel IA32 Processor

Intel uses IA32 to refer to Pentium processor family, in order to distinguish them from their 64-bit architectures.

1.1 Modes

The 1A32 processor has three operating modes: There is also a virtual-8086 mode that allows the processor to execute 8086 code software in the protected, multi-tasking environment.

1.2 Register Set

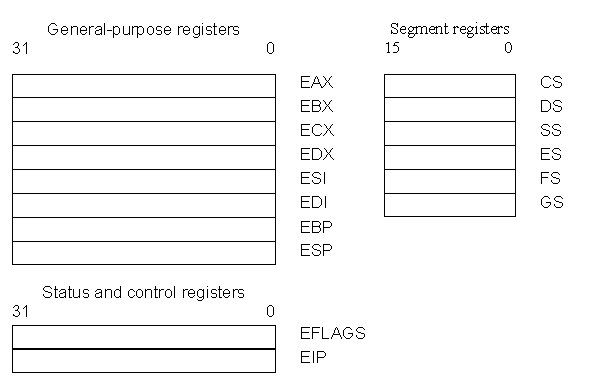

There are three types of registers: general-purpose data registers, segment registers, and status and control registers. The following figure shows these registers:

General-purpose Registers

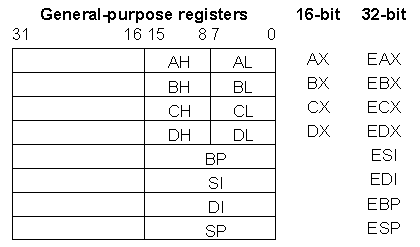

The eight 32-bit general-purpose data registers are used to hold operands for logical and arithmetic operations, operands for address calculations and memory pointers. The following shows what they are used for: The following figure shows the lower 16 bits of the general-purpose registers can be used with the names AX, BX, CX, DX, BP, SP, SI, and DI (the names for the corresponding 32-bit ones have a prefix "E" for "extended"). Each of the lower two bytes of the EAX, EBX, ECX, and EDX registers can be referenced by the names AH, BH, CH, and DH (high bytes) and AL, BL, CL, and DL (low bytes).

Segment Registers

There are six segment registers that hold 16-bit segment selectors. A segment selector is a special pointer that identifies a segment in memory. The six segment registers are: Four data segment registers provide programs with flexible and efficient ways to access data.

Modern operating system and applications use the (unsegmented) memory model¾ all the segment registers are loaded with the same segment selector so that all memory references a program makes are to a single linear-address space.

When writing application code, you generally create segment selectors with assembler directives and symbols. The assembler and/or linker then creates the actual segment selectors associated with these directives and symbols. If you are writing system code, you may need to create segment selectors directly. (A detailed description of the segment-selector data structure is given in Chapter 3, Protected-Mode Memory Management, of the IA32 Intel Architecture Software Developer's Manual, Volume 3).

Project 1, 2, 3, and 4 all use  the real-address mode and needs to set up the segment registers properly. Project 5 and 6 will use unsegmented memory model.

EFLAGS Register

The 32-bit EFLAGS register contains a group of status flags, a control flag, and a group of system flags. The following shows the function of EFLAGS register bits:

Function
EFLAG Register bit or bits
ID Flag (ID)
21 (system)
Virtual Interrupt Pending (VIP)
20 (system)
Virtual Interrupt Flag (VIF)
19 (system)
Alignment check (AC)
18 (system)
Virtual 8086 Mode (VM)
17 (system)
Resume Flag (RF)
16 (system)
Nested Task (NT)
14 (system)
I/O Privilege Level (IOPL)
13 to 12 (system)
Overflow Flag (OF)
11 (system)
Direction Flag (DF)
10 (system)
Interrupt Enable Flag (IF)
9 (system)
Trap Flag (TF)
8 (system)
Sign Flag (SF)
7 (status)
Zero Flag (ZF)
6 (status)
Auxiliary Carry Flag (AF)
4 (status)
Parity Flag (PF)
2 (status)
Carry Flag (CF)
0 (status)

Bits 1, 3, 5, 15, and 22 through 31 of this register are reserved.  To understand what these fields mean and how to use them, please see Section 3.6.3 and 3.6.4 in  IA32 Intel Architecture Software Developer's Manual, Volume 1.

EIP Register (Instruction Pointer)

The EIP register (or instruction pointer) can also be called "program counter." It contains the offset in the current code segment for the next instruction to be executed. It is advanced from one instruction boundary to the next in straight-line code or it is moved ahead or backwards by a number of instructions when executing JMP, Jcc, CALL, RET, and IRET instructions. The EIP cannot be accessed directly by software; it is controlled implicitly by control-transfer instructions (such as JMP, Jcc, CALL, and RET), inter-rupts, and exceptions. The EIP register can be loaded indirectly by modifying the value of a return instruction pointer on the procedure stack and executing a return instruction (RET or IRET).

Note that the value of the EIP may not match with the current instruction because of instruction prefetching. The only way to read the EIP is to execute a CALL instruction and then read the value of the return instruction pointer from the procedure stack.

The IA32 processors also have control registers, which can be found in the Intel/manuals.

1.3 Addressing

Bit and Byte Order

IA32 processors use "little endian" as their byte order. This means that the bytes of a word are numbered starting from the least significant byte and that the least significant bit starts of a word starts in the least significant byte.

Data Types

IA32 provides four data types: a byte (8 bits), a word (16 bits), a double-word (32 bits), and a quad-word (64 bits). Note that a word is "word" in Gnu assembler and a double-word is equivalent to "long" in Gnu assembler.

Memory Addressing

One can use either flat memory model or segmented memory mode.  With the flat memory model, memory appears to a program as a single, continuous address space, called a linear address space. Code (a program’s instructions), data, and the procedure stack are all contained in this address space. The linear address space is byte addressable, with addresses running contiguously from 0 to 2 32 - 1.

With the segmented memory mode, memory appears to a program as a group of independent address spaces called segments. When using this model, code, data, and stacks are typically contained in separate segments. To address a byte in a segment, a program must issue a logical address, which consists of a segment selector and an offset. (A logical address is often referred to as a far pointer.) The segment selector identifies the segment to be accessed and the offset identifies a byte in the address space of the segment. The programs running on an IA32 processor can address up to 16,383 segments of different sizes and types. Internally, all the segments that are defined for a system are mapped into the processor’s linear address space. So, the processor translates each logical address into a linear address to access a memory location. This translation is transparent to the application program.

1.4 Processor Reset

A cold boot or a warm boot can reset the CPU.  A cold boot is powering up a system whereas a warm boot means that when three keys CTRL-ALT-DEL are all pressed together, the keyboard BIOS will set a special flag and resets the CPU.

Upon reset, the processor sets itself to real-mode with interrupts disabled and key registers set to a known state.  For example, the state of the EFLAGS register is 00000002H and the memory is unchanged.  Thus, the memory will contain garbage upon a cold boot.  The CPU will jump to the BIOS (Basic Input Output Services) to load the bootstrap loader program from the diskette drive or the hard disk and begins execution of the loader.  The BIOS loads the bootstrap loader into the fixed address 0:7C00 and jumps to the starting address.

2 Assembly Programming

It often takes a while to master the techniques to program in assembly language for a particular machine. On the other hand, it should not take much time to assembly programming on IA32 processors if you are familiar with assembly programming for another processor.   This section assumes that you are already familiar with Gnu assembly syntax (learned from the course Introduction to Programming Systems or its equivalent).

2.1 Instruction Syntax

There are two conventions about their syntax and representations: Intel and AT&T. Most documents use the Intel convention, whereas the Gnu assembler uses the AT&T convention.  The main differences are:


Gnu Syntax (AT&T)

Intel
Immediate operands Preceded by "$"
e.g.:push $4
   movl $0xd00a, %eax		 Undelimited
e.g.: push 4
   mov ebx, d00ah
Register operands Preceded by "%"
e.g.: %eax		 Undelimited
e.g.: eax
Argument order (e.g. adds the address of C variable "foo" to register EAX) source1, [source2,] dest
e.g.: addl $_foo, %eax		 dest, source1 [, source2]
e.g.: add eax, _foo
Single-size operands Explicit with operand sizes
opcode{b,w,l}
e.g.: movb foo, %al		 Implicit with register name, byte ptr, word ptr, or dword ptr
e.g.: mov al, foo
Address a C variable "foo" _foo [_foo]
Address memory pointed by a register (e.g. EAX) (%eax) [eax]
Address a variable offset by a value in the register _foo(%eax) [eax + _foo]
Address a value in an array "foo" of 32-bit integers _foo(,%eax,4) [eax*4+foo]
Equivalent to C code *(p+1) 1(%eax) If EAX holds the value of p, then [eax+1]



2.2 Memory operands

IA32 processors use segmented memory architecture.  It means that the memory locations are referenced by means of a segment selector and an offset:

The segment selector can be specified either implicitly or explicitly. The most common method of specifying a segment selector is to load it in a segment register and then allow the processor to select the register implicitly, depending on the type of operation being performed. The processor automatically chooses a segment according to the following rules:

The offset part of the memory address can be specified either directly as a static value (called a displacement) or through an address computation made up of one or more of the following components:

An effective address is computed by:

Offset = Base + (Index ´ Scale) + displacement

The offset which results from adding these components is called an effective address of the selected segment. Each of these components can have either a positive or negative (2's complement) value, with the exception of the scaling factor.

2.3. Frequently Used Instructions

The following is a small set of frequently used instructions:

Category Instructions Explanations

Data Transfer

mov{l,w,b} source, dest

Move from source to dest

xchg{l,w,b} dest1, dest2

Exchange

cmpxchg{l,w,b} dest1, dest2

Compare and exchange

push/pop{l,w}

Push onto / pop off the stack

movsb

Move bytes at DS:(E)SI to address ES:(E)DI, typically prefix with rep

Arithmetic

add/sub{l,w,b} source, dest

Add/subtract

imul/mul{l,w,b} formats

Signed/unsigned multiply

idiv/div{l,w,b} dest

Signed/unsigned divide

inc/dec/neg{l,w,b} dest

Increment/decrement/negate

cmp{l,w,b} source1, source2

Compare

Logic

and/or/xor/not{l,w,b} source, dest

Logic and/or/xor/not operation

sal/sar{l,w,b} formats

Arithmetic shift left/right

shl/shr{l,w,b} formats

Logic shift left/right

Control transfer





jmp address

Unconditional jump

call address

Save EIP on the stack jump to address

ret

Return to the EIP location saved by call

leave

Restore EBP from the stack; pop off the stack frame

j{e,ne,l,le,g,ge} address

Jump to address if {=,!=,<,<=,>,>=}

loop address

Decrement ECX or CX; jump if = 0

rep

Repeat string operation prefix

int number

Software interrupt

iret

Return from interrupt; pop EFLAGS from the stack

In addition, the name for a long JUMP is ljmp and long CALL is lcall.

This is again a small set of instructions.  Section 3.2 of IA32 Intel Architecture Software Developer's Manual, Volume 2 provides a complete set of the IA32 instructions and the detailed description for each instruction. The instruction names in the Intel manual uses the Intel convention (obviously) and you need to convert them to the AT&T syntax.

2.4 Assembler Directives

The Gnu assembler directive names begin with a period "." and the rest are letters in lower case.  Here are some examples of commonly used directives: When using directives to define a string, bytes or a word, you often want to make sure that they are aligned to 32-bit long word by padding additional bytes.

2.5 Inline Assembly

The most basic format of inline assembly code into your the assembly code generated by the gcc compiler is to use where assembly-instruction will be inlined into where the asm statement is.  The key word volatile is optional.  It tells the gcc compiler not to optimize this instruction away.  This is a very convenient way to inline assembly instructions that require no registers.  For example, you can use to clear interrupts and to enable interrupts.

The general format to write inline assembly code in C is:

where statements are the assembly instructions.  If there are more than one instruction, you can use "\n\t" to separate them to make them look pretty.    "input_regs" tells gcc compiler which C variables move to which registers.  For example, if you would like to load variable "foo" into register EAX and "bar" into register ECX, you would say gcc uses single letters to represent all registers:



Single Letters
Reigsters
a
eax
b
ebx
c
ecx
d
edx
S
esi
D
edi
I
constant value (0 to 31)
q
 allocate a register from EAX, EBX, ECX, EDX
r
allocate a register from EAX, EBX, ECX, EDX, ESI, EDI
Note that you cannot specify register AH or AL this way.  You need to get to EAX first and then go from there.

"output_regs" provides output registers.  A convenient way to do this is to let gcc compiler to pick the registers for you.  You need to say "=q" or "=r"  to let gcc compiler pick registers for you.   You can refer to the first allocated register with "%0", second with "%1", and so on, in the assembly instructions.  If you refer to the registers in the input register list, you simply say "0" or "1" without the "%" prefix.

"used_regs" lists the registers that are used (or clobbered) in the assembly code.

To understand exactly how to do this, please try to use gcc to compile a piece of C code containing the following inline assembly:

and

2.6 Program Structure and Calling Conventions

The simplest way to learn assembly programming is to compile a simple C program into its assembly source code as a template.   The source code will tell you common opcodes, directives and addressing syntax.   This is an efficient way to learn assembly programming.

The following is an example to show the program structure and calling conventions.  Consider the following C program hello.c:

#include <stdio.h>

static char buf[ 4096 ];

int foo( int n )
{
    return n - 1;
}

int main (void)
{
    printf( "Hello world\n" );
    return foo( 5);
}

Issue the command on a shell:

    gcc -S hello.c

gcc compiler will compile hello.c into its assembly source file in the same directory called hello.s.  After reading this document, you should find the assembly code self-explantory.  In case you have questions, following provides some comments on the instructions related to calling conventions.

      .file "hello.c"
      .text
.globl foo                      # "foo" is a global name
      .type foo,@function       # "foo" is a function type
foo:
      pushl %ebp                # push ebp onto stack
      movl  %esp, %ebp          # move stack pointer to ebp
      movl  8(%ebp), %eax
      decl  %eax
      leave                     # restore esp and ebp
      ret                       # return to caller
.Lfe1:
      .size foo,.Lfe1-foo
      .section    .rodata
.LC0:
      .string     "Hello world\n"
      .text
.globl main
      .type main,@function
main:
      pushl %ebp                # push ebp onto stack
      movl  %esp, %ebp          # move stack pointer esp to ebp
      subl  $8, %esp
      andl  $-16, %esp
      movl  $0, %eax
      subl  %eax, %esp
      subl  $12, %esp
      pushl $.LC0
      call  printf
      addl  $16, %esp
      subl  $12, %esp
      pushl $5                  # push arg to stack
      call  foo                 # call foo function
      addl  $16, %esp
      leave                     # restore esp and ebp
      ret                       # return
.Lfe2:
      .size main,.Lfe2-main
      .local      buf
      .comm buf,4096,32
      .ident      "GCC: (GNU) 3.2.2 20030222 (Red Hat Linux 3.2.2-5)"


You should try to create a few program examples in C and use gcc to compile them into assembly as case studies.



3 BIOS Services

The book Undocumented PC provides detailed BIOS (Basic Input/Output System) services.  This document presends a very small set of services used in our course projects.

3.1 Display Memory

PC's display RAM is mapped into memory space.  One can write directly to the screen by writing to the display RAM starting at 0xb800:0000. Each location on the screen requires two bytes---one to specify the attribute (Use 0x07 for white color) and the second for the character itself. The text screen has 25 lines and 80 characters per line.  So, to write to i-th row and j-th column, you write the 2 bytes starting at offset ((i-1)*80+(j-1))*2.

So, the following code sequence writes the character 'K' (ascii 0x4b) to the top left corner of the screen.
     movw 0xb800,%bx
    movw %bx,%es
    movw $0x074b,%es:(0x0)

This code sequence is useful for debugging programs during booting.

3.2 Write to Display at Current Cursor

To send a character to the display at the current cursor position on the active display, one can use the BIOS service:

        int 0x10

with the following parameters

The service returns the character displayed.  Note that the linefeed character is 0x0a and carriage return is 0x0d.

This service call automatically wraps lines, scrolls and interprets some control characters for specific actions.

3.3 Read from Diskette

The BIOS service call for reading 521-byte diskette sectors from a specified location uses the software interrupt

        int 0x13

with the following parameters set up:

This service call will return the following:

The data read is placed into RAM at the location specified by ES:BX. The buffer must be sufficiently large to hold the data and must not cross a 64K linear address boundary.
