Write a program to recognize line patterns in a given set of points.
Computer vision involves analyzing patterns in visual images and reconstructing the real world objects that produced them. The process is often broken up into two phases: feature detection and pattern recognition. Feature detection involves selecting important features of the image; pattern recognition involves discovering patterns in the features. We will investigate a particularly clean pattern recognition problem involving points and line segments. This kind of pattern recognition arises in many other applications, for example statistical data analysis.

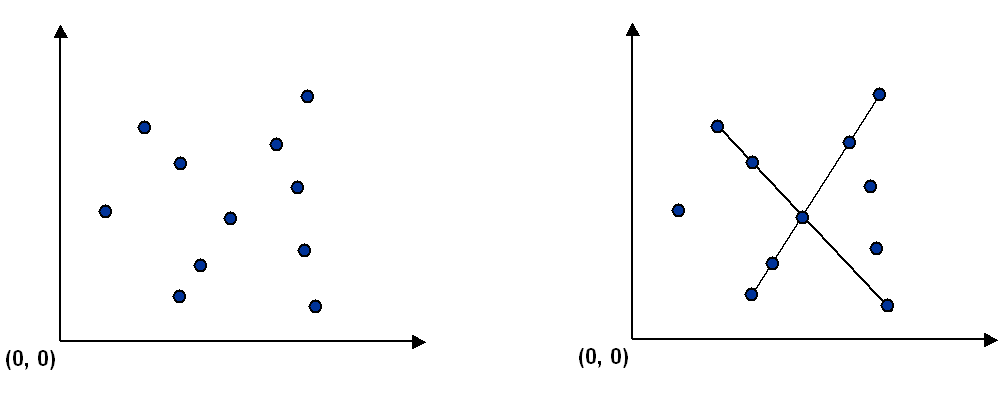

The problem. Given a set of N feature points in the plane, determine every line segment that contains 4 or more of the points, and plot all such line segments.
Brute force. Write a program brute.c that examines 4 points at a time and checks if they all lie on the same line segment, plotting any such line segments in turtle graphics. To get started, first implement a data type for points in the plane. The file point.c implements the Point interface defined in point.h. You will need to supply additional interface functions to support the brute force client, e.g., checking whether three points lie on the same line. You can begin your brute force client from the client plotpoints.c, which reads in a list of points and plots them using turtle graphics.

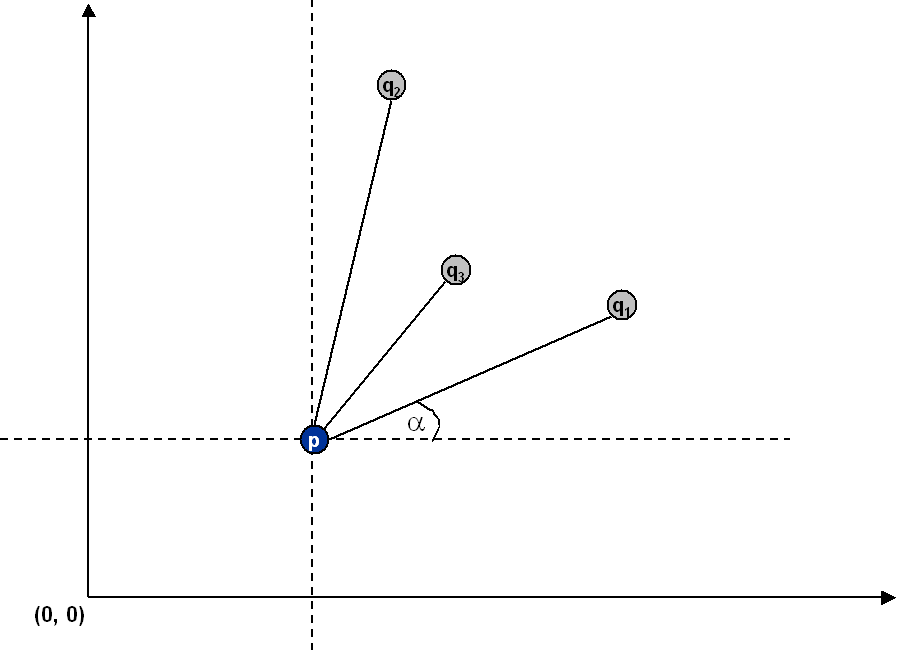

A sorting solution. Remarkably, it is possible to solve the problem much faster than the brute force solution described above. Given a point p, the following method determines whether p participates in a group of 4 or more collinear points. Applying this method for each of the N points in turn yields an efficient algorithm to the problem.
The algorithm works because points that make the same angle with p are collinear and sorting brings such points together. The algorithm is fast because the bottleneck operation is sorting.
Write a program lines.c that implements this algorithm.
Input format.
Assume the points are given as pairs of integers (x, y) between 0 and 32,768.
16384 19200
16384 21120
16384 32000
16384 21761
10000 10000
Output format.
Your program should output a turtle graphics
program that draws all of the points
and the line segments you discover, as in the output below.
Note that the points are scaled down by a factor of 64.0 so that they
fit inside a 512-by-512 turtle graphics window.
F 256.000000 300.000000 S 2
F 256.000000 330.000000 S 2
F 256.000000 500.000000 S 2
F 256.000000 340.015625 S 2
F 156.250000 156.250000 S 2
F 256.000000 330.000000 G 256.000000 500.000000
Analysis. Estimate the running time of your two programs as a function of N. Provide analytical and empirical evidence to support your answer.
Appendix: Turtle graphics.
Your program should output the points and the lines it finds in turtle
graphics format, which is a simplified version of an ancient language
called Logo. Logo is a powerful and rich language, but for
this
assignment we will only need two commands. The following examples
explain these commands:
draws a point of size 2 at position (10.0,20.0).
F 10.0 20.0 S 2
draws a line connecting (256.0,330.0) and (256.0,500.0).
Note that the drawing turtle lives in a box of size 512x512,
and therefore we must scale down the input coordinates by
a factor of 64.0 before output.
In order for you (and for us) to view the result, a program
turtle.c
is supplied. This program reads turtle graphics commands as
standard input, and outputs Postscript commands as standard
output. If the output is redirected to a file, it can be viewed
using standard Postscript viewers, such as GSview for
Windows, or ghostview on arizona and other unix machines.
To view the result, compile
turtle.c
into an executable called "turtle",
type "lines < data.txt | turtle > data.eps" to create the
PostScript file, and view it with any PostScript viewer (assuming
the executable of your solution is called "lines").
Note that a similar command works under Windows command
prompt mode.
F 256.000000 330.000000 G 256.000000 500.000000
